U2103 00 Parking Assist

U2103 00

SPA Missing on BUS







On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.
- Battery voltage greater than 9 V.

Fault criteria:
- SPA control module missing on the bus.

System reaction to a fault:
- Parking assistance is switched off.
- No bus communication.

Diagnostic help

Diagnosis regards:

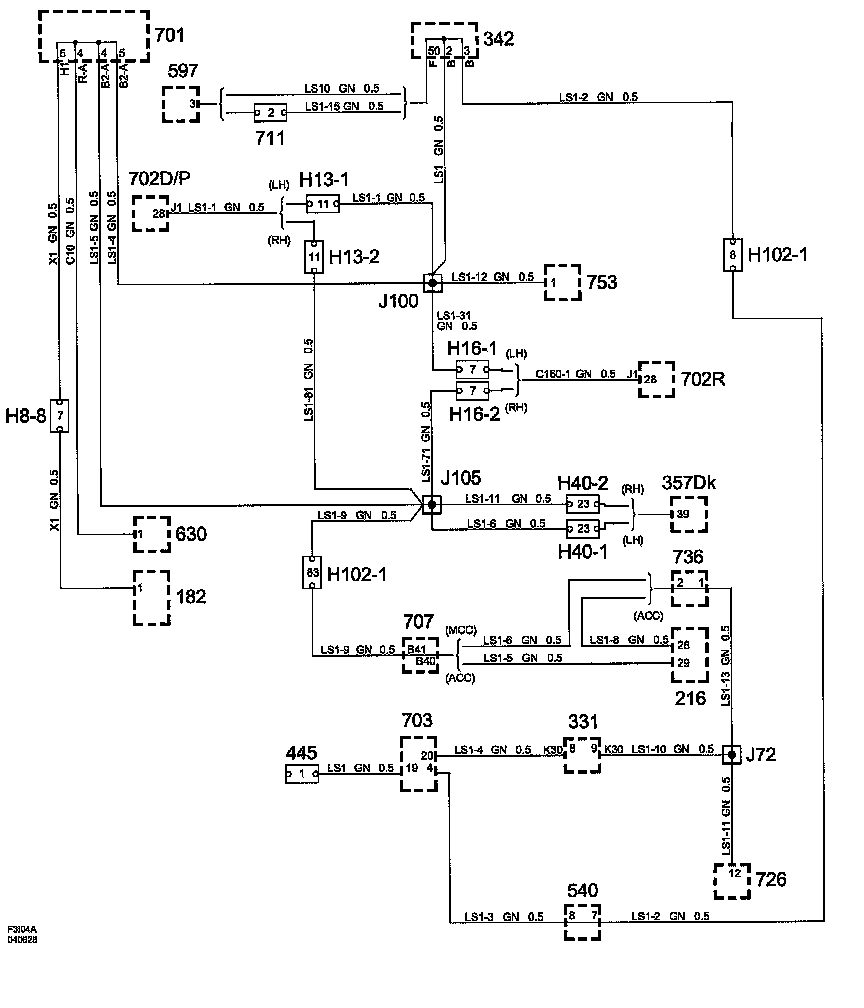

- Electrical fault on bus leads or in the component.

Functions in the diagnostic tool related to the fault:

Test value:
- Bus Off Counter, I-Bus
(See also description of readings/activations in diagnostic tool)
