U2103 00 - 02

U2103 00

TCS/ESP was Missing on Bus







Fault symptom
- TCS warning lamp on.
- Messages shown in SID.

On-board diagnosis

Enable criteria:
- Ignition ON.

Fault criteria:
- No communication with CIM for 1.25 s.

System reaction to a fault:
- No TCS/ESP function

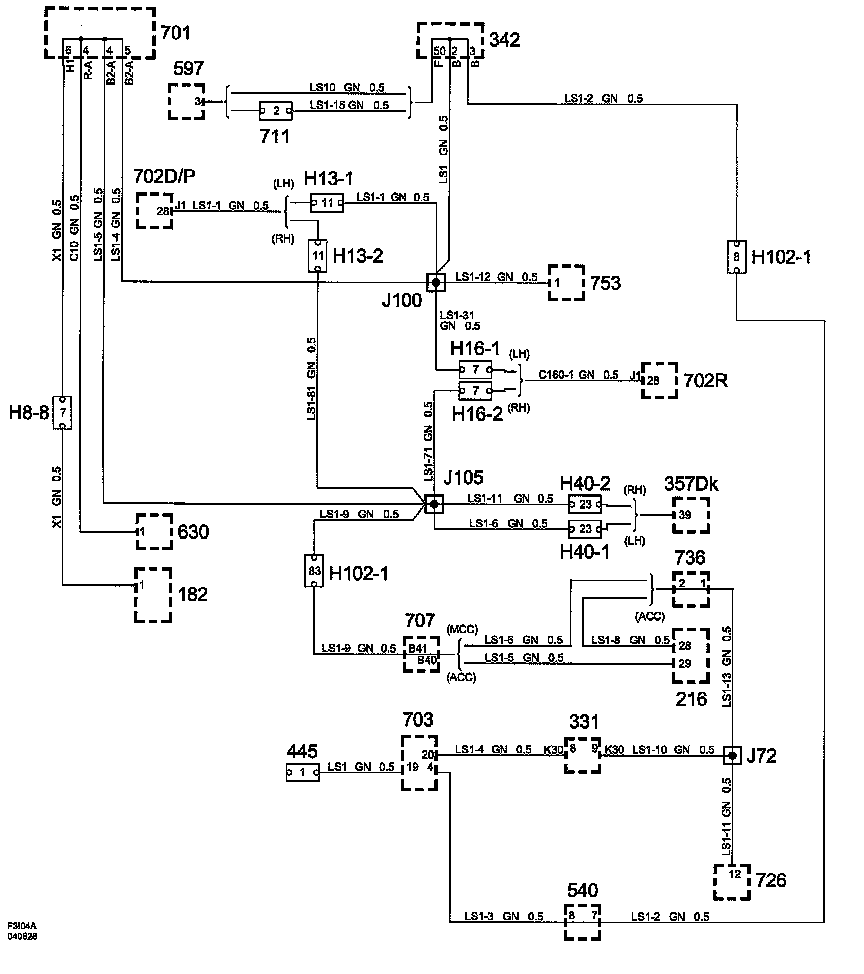

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help
- In order to read DTC from TCS/ESP, communication with CIM is required. If the DTC is stored and read with the diagnostic instrument, it indicates intermittent bus lead fault.
