U1500 0F

U1500 0F

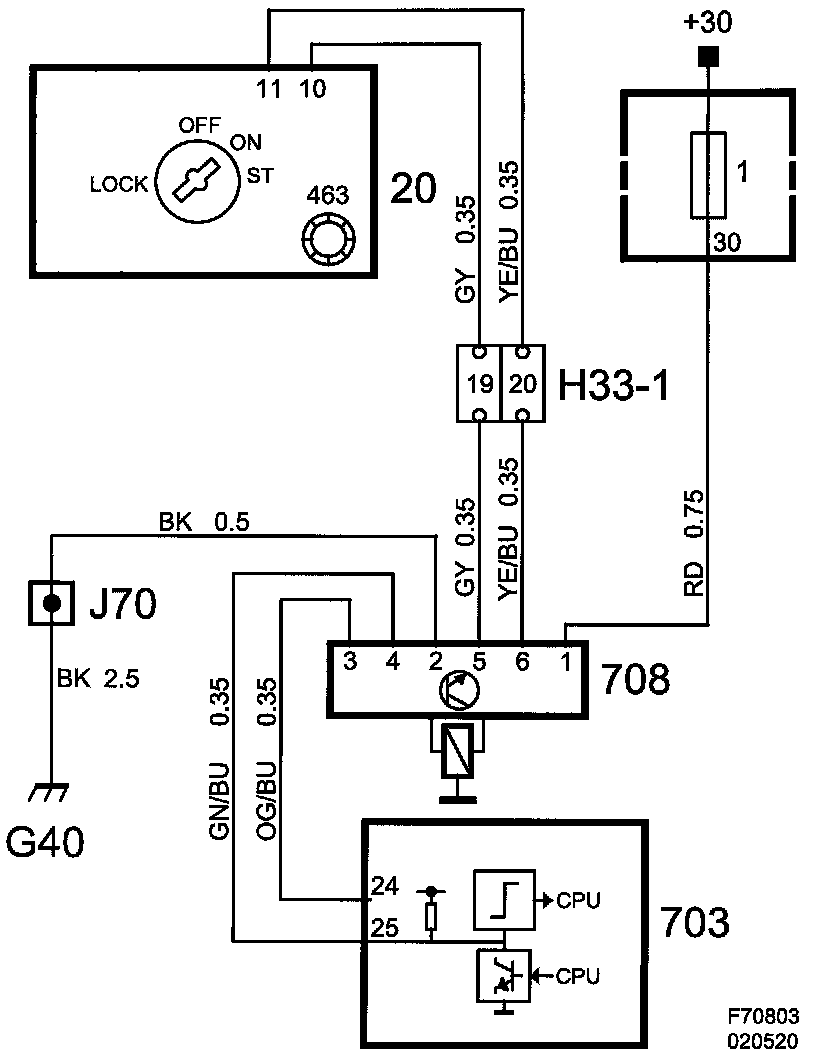

K-line CIM-SCL, Open







Fault symptom
- Engine does not start.
- Messages shown in SID.
- Cannot turn key.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics runs when key is inserted.

Fault criteria:
- No response from the steering column lock.

System reaction to a fault:
- The control module does not allow starter motor cranking.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.
