U1500 01

U1500 01

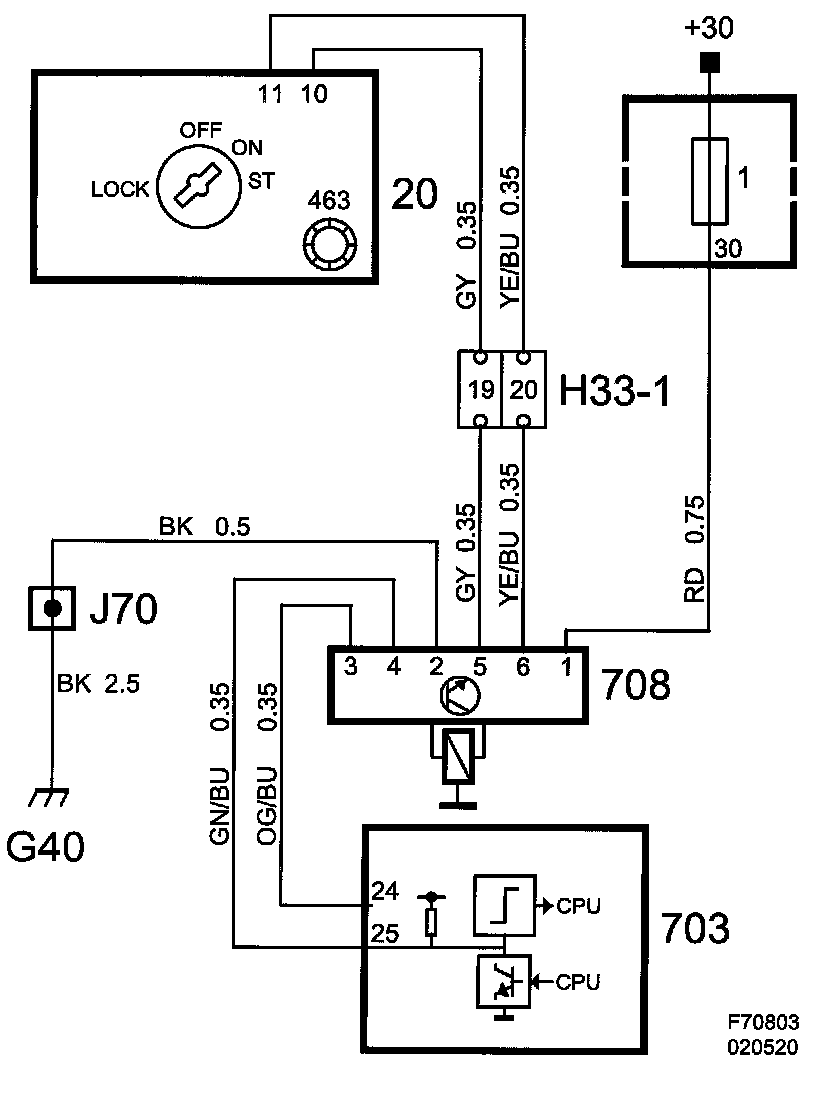

K-line CIM-SCL, Short to Ground/B







Fault symptom
- Cannot turn key.
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics runs when key is inserted.

Fault criteria:
- No information from CIM to the steering column lock.

System reaction to a fault:
- The control module does not allow starter motor cranking.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.
