P2762

P2762 04

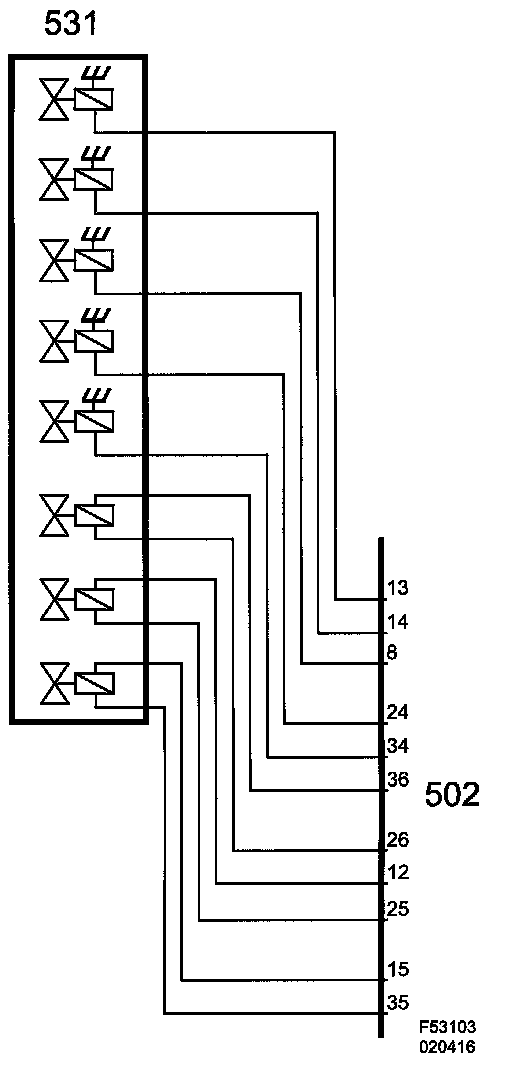

Solenoid SLU Circuit, Open







Fault symptom
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Engine running and not in limp home mode.

Fault criteria:
- Current consumption exceeds 80 mA for more than 2.75 s.

System reaction to a fault:
- Limp home

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.
