P1611

P1611 00

Control Module not Added







Fault symptom
- The car will not start.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Faulty security code entered in "Add".

Dependent:
- None

System reaction to a fault:
- Control module locks for a specific amount of time whenever an incorrect security code is entered.

OK report:
- Fault criteria NOT fulfilled.

Diagnostic help

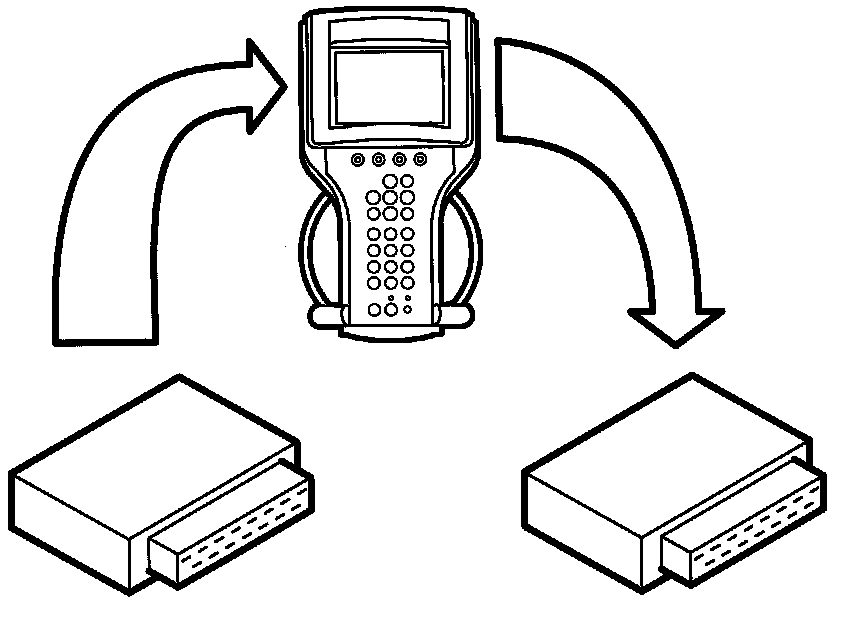

- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
