P1609

P1609 00

CIM or I Bus ECU's Not Added







Fault symptom
- The car will not start.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- CIM or other ECU on the I-bus not programmed.

Dependent:
- None

System reaction to a fault:
- Starter motor cannot be started.

OK report:
- Fault criteria NOT fulfilled.

Fault handling:
Type III
(See section Fault handling III, "Other emission-related components and functions" for more information.)

Diagnostic help

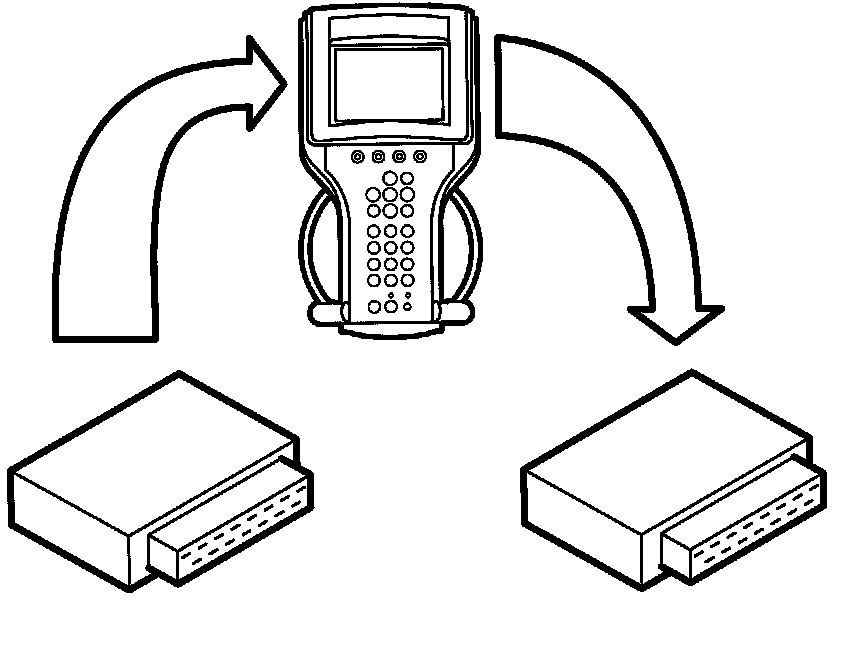

- See "After fitting a control module" under fault diagnosis, general.
- See which DTC are stored in the other systems and read their diagnostics information.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
