P1606

P1606 00

Control Module. Internal Fault







On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module on-board diagnostics has detected a fault in the main processor.

Dependent:
- None

OK report:
- Fault criterion not fulfilled and vehicle speed over 0 km/h for more than 60 s.

Fault handling:
- Type III without Check Engine.
(See section Fault handling III, "Other emission-related components and functions" for more information.)

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

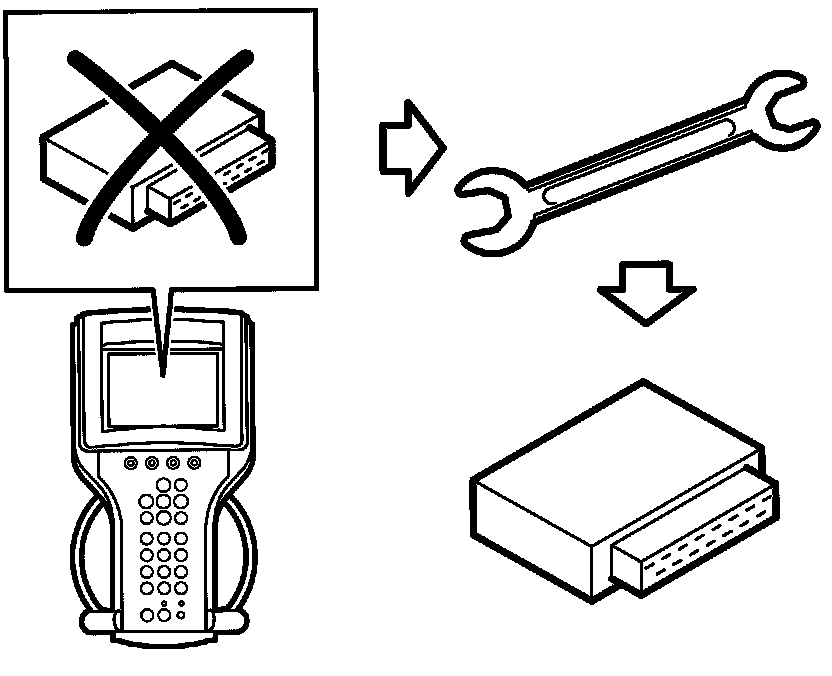

- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
