P1523

P1523 00

Throttle Mechanical, Throttle Default Position Fault







Fault symptom
- Check Engine
- Cruise control not working.
- Limp home

On-board diagnosis

Type of diagnosis:
- Continually

Enable criteria:
- When the ECM is awake, diagnosis is active (even with the ignition off).

Test 1
- Engine is not running.
- Throttle position requested in rest position to conserve current.

Test 2
- Engine running.
- Throttle position requested in rest position due to system reaction to another DTC.

Fault criteria:

Test 1
- The throttle has a > 41% variation from rest position for 0.6 s.

Test 2
- There is no signal from the throttle position sensors and the air mass flow rate is > 23g/s for 0.15 s.

Each time the voltage across the throttle motor is disengaged, the throttle returns to its starting position.

Dependent:
- None

System reaction to a fault:

Test 1
- Correction of mass air flow/combustion for fuel calculation is blocked.
- Limited acceleration and idle function.
- Cruise control blocked.
- Secondary air injection function is disengaged if the secondary air injection pump is fitted.

Test 2
- Engine shut off.

OK report:
- Approximately 3 to 5 seconds after the ignition is switched off, when the throttle resumes rest position.

Fault handling:
Type III
(See section Fault handling III, "Other emission-related components and functions" for more information.)

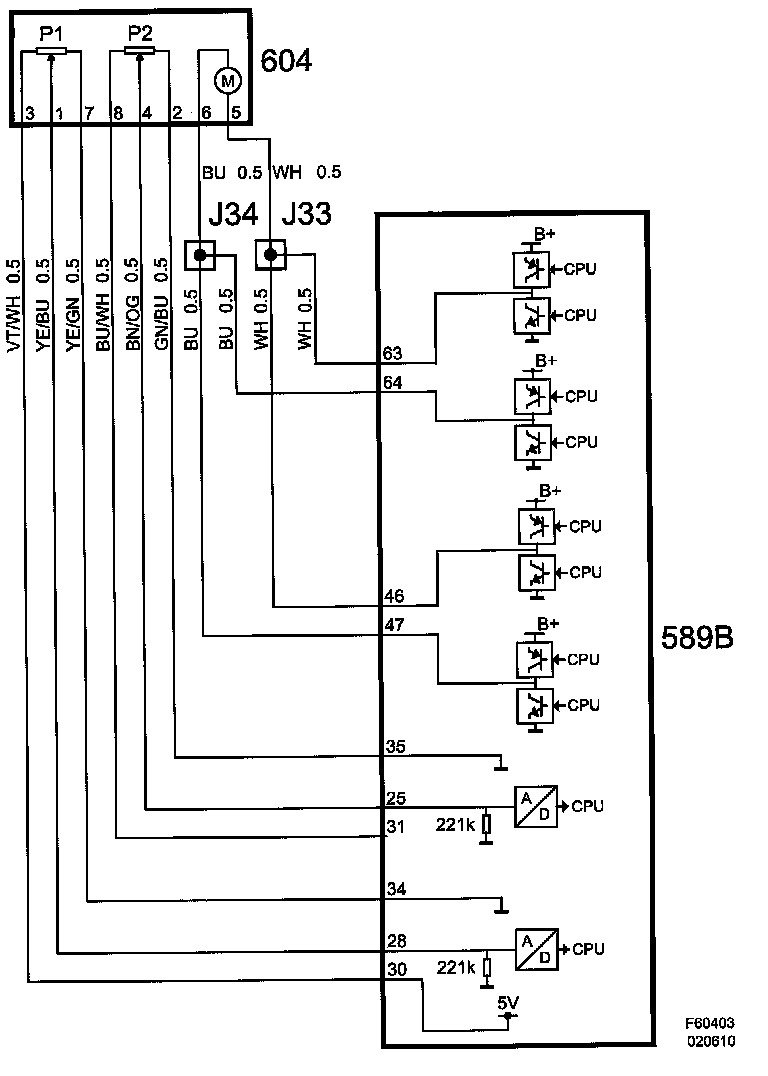

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.
- Mechanically binding/affected throttle.
- P1523 is generated if the throttle is moved (e.g. with a screwdriver) when in the rest position, even when the ignition is off.

Functions in the diagnostic tool related to the fault:

Test value:
- Throttle Position Sensor 1
- Throttle Position Sensor 2

Activation:
- Throttle Position Test
(See also description of readings/activations in diagnostic tool)
