P0602 00 (TCM AF40 - 6 speed) and (TCM FA57 - 5 speed)

P0602 00

Control Module not Added







Fault symptom
- Messages shown in SID.
- Gearbox not shifting gear.

On-board diagnosis

Type of diagnosis:
- During each initiation and after each programming

Enable criteria:
- Ignition ON.

Fault criteria:
- The control module is not EOL programmed.

System reaction to a fault:
- Gearbox not shifting gear.

Diagnostic help

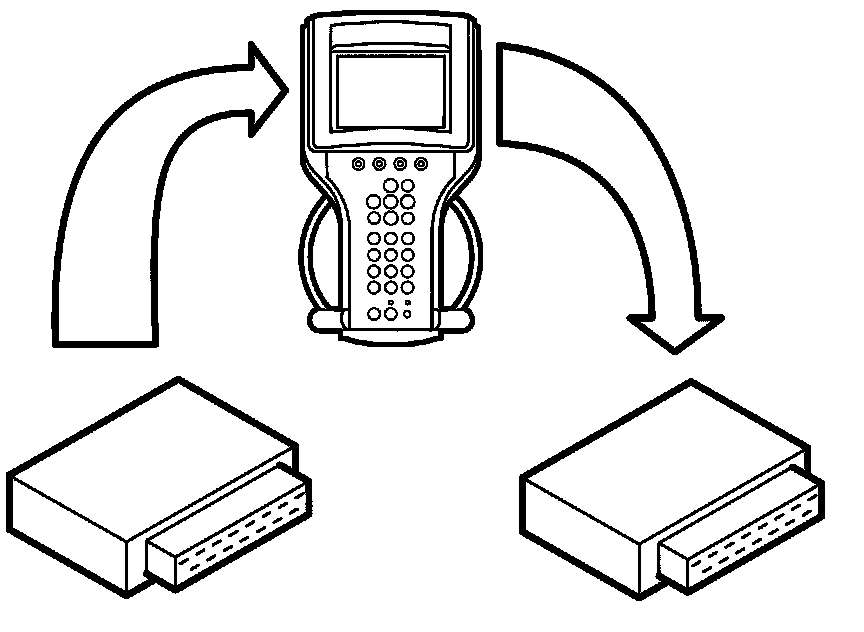

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
