P0562

P0562 12

Battery Voltage. Too Low







Fault symptom
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Fault criteria:
- Power supply below 8.7 V for more than 1 s.

System reaction to a fault:
- Messages shown in SID.
- TCM in Limp Home.

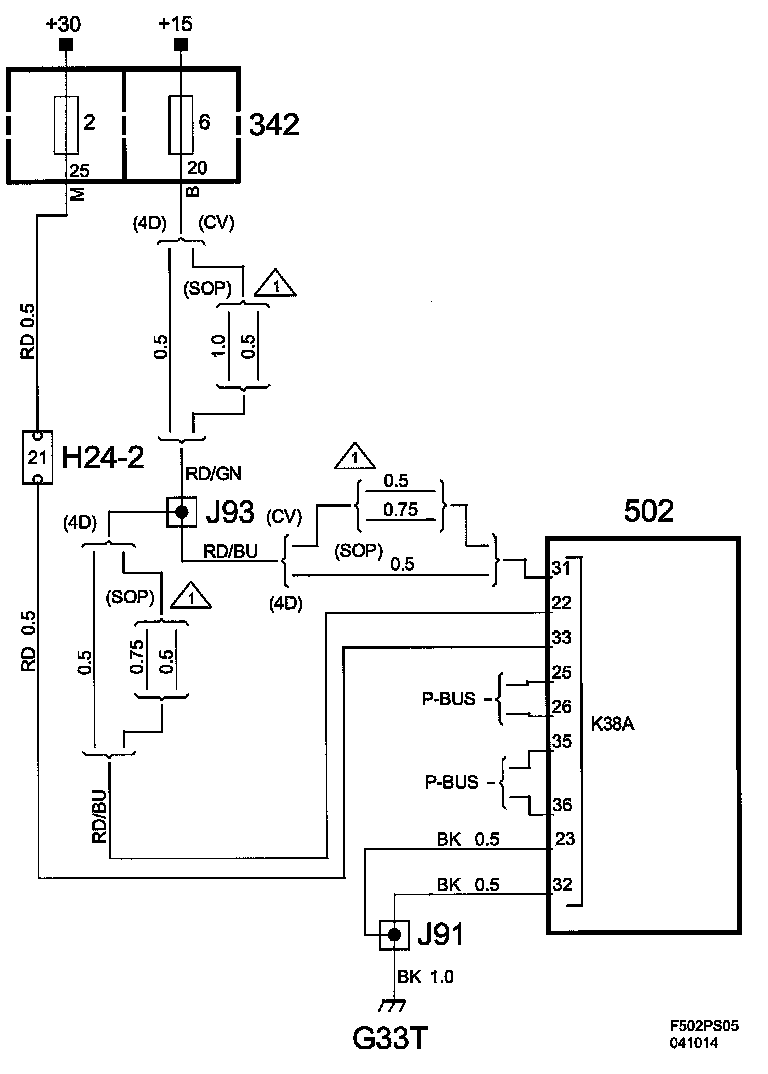

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Finding power supply faults.
