C0895

C0895 08

Yaw Rate Sensor, Supply Voltage Out of Range







Fault symptom
- ESP warning lamp on.
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Voltage to yaw rate sensor below 7.8 V for 10 seconds with ignition on.

System reaction to a fault:
- No ESP function

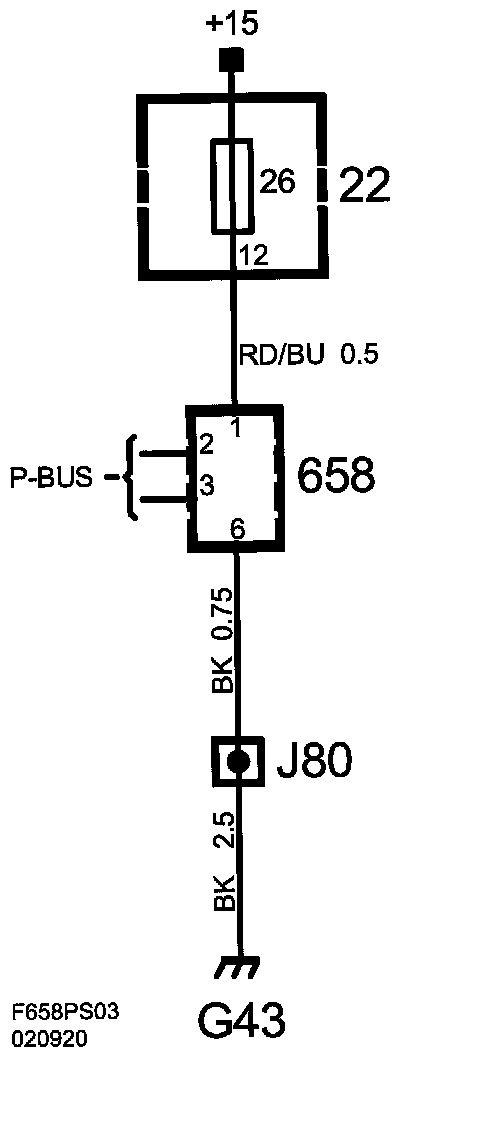

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help
- The sensor is a combined yaw angle sensor and lateral acceleration sensor.
