C0855

C0855 03

+X, Open/Short to Ground







Fault symptom
- Messages shown in SID.
- Steering column lock not working.

On-board diagnosis

Type of diagnosis:
- Continuous

Fault criteria:
- Battery voltage is below 9.5 V for 0.5 s.

System reaction to a fault:
- Steering column lock deactivated.

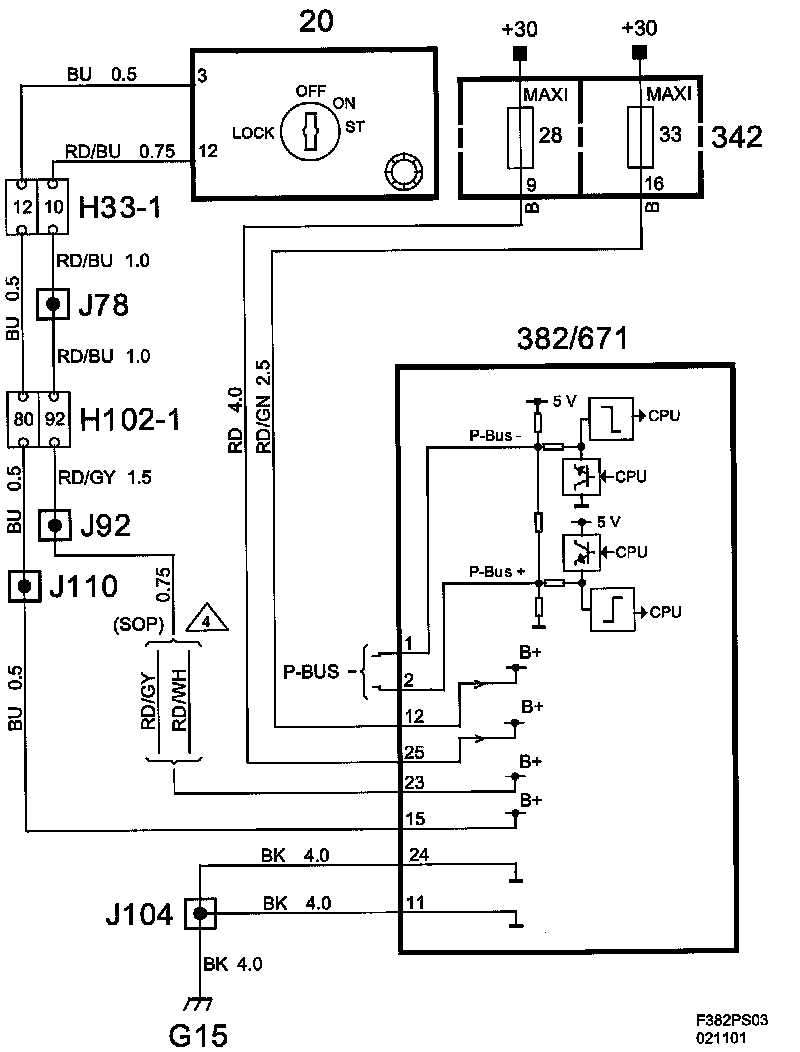

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.
