C0760 00

C0760 00

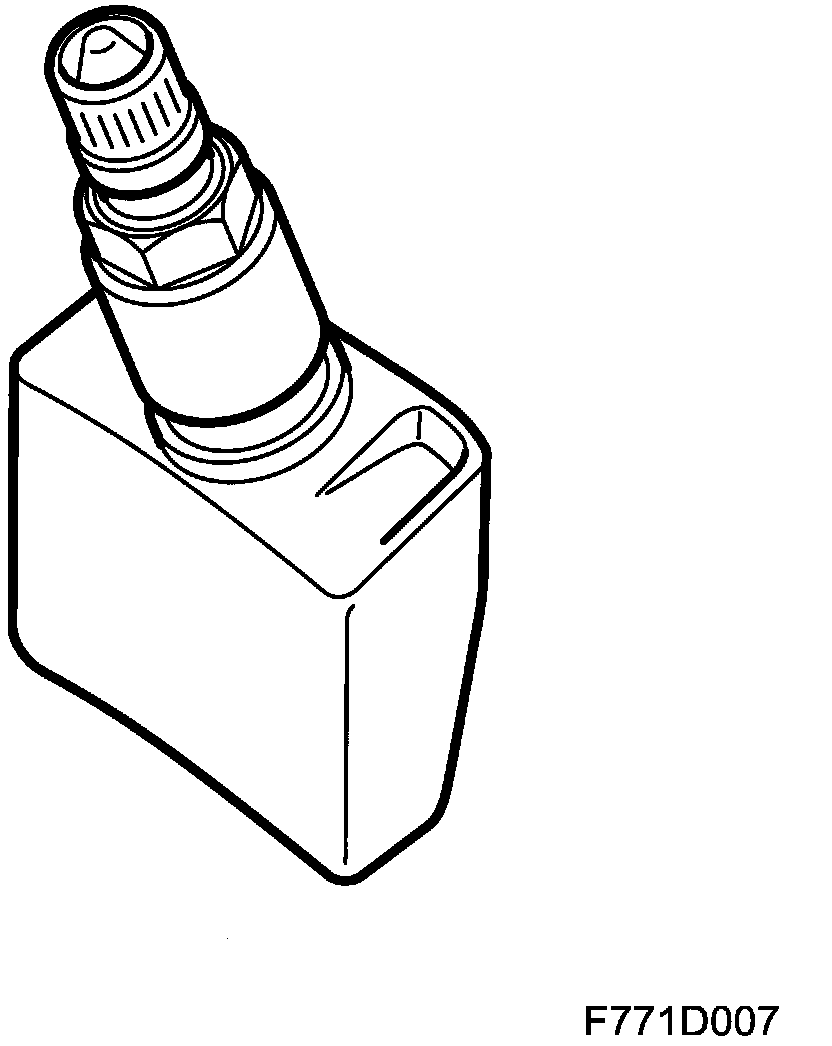

Air Valve Left Rear, No Radio Signal







Fault symptom
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Vehicle speed above 30 km/h for more than 30 seconds.

Fault criteria:
- No signal from the pressure sensor within 10 minutes after the input conditions are met.

System reaction to a fault:
- None

Diagnostic help

Diagnosis regards:
- In case of a fault, the control module may need up to 10 minutes in an active state before it can diagnose the fault.
- The diagnostic trouble code can be incorrectly generated if the system has carried out a complete reset and an air valve is missing.
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Pressure Status LR
- Transmissions LR
(See also description of readings/activations in diagnostic tool)
