C0569

C0569 00

Control Module not Added







Fault symptom
- TCS/ESP warning lamp comes on.
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.
- Diagnostics run when ignition is ON.

Fault criteria:
- The control module has an incorrect configuration

System reaction to a fault:
- No TCS/ESP function

Diagnostic help

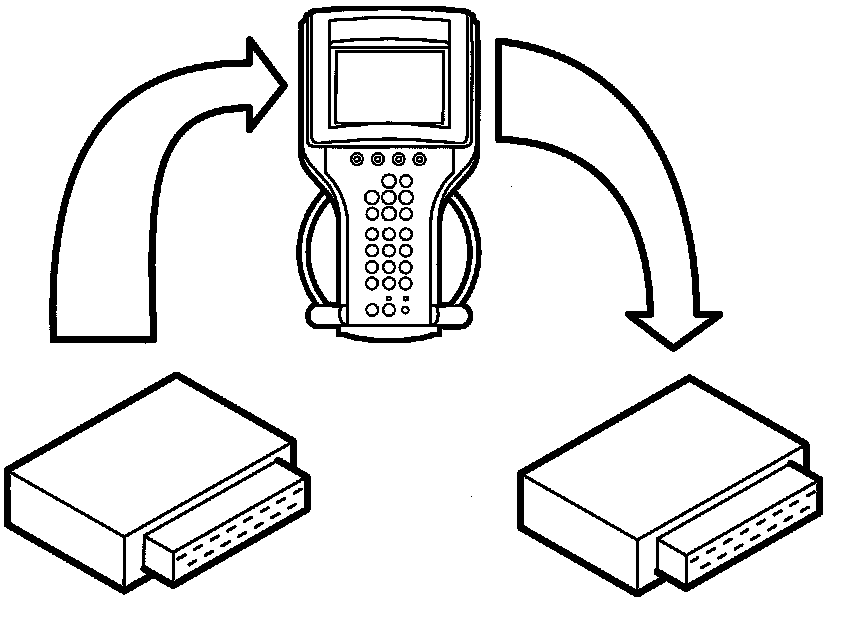

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
