C0551

C0551 45

Control Module not Added







Fault symptom
- ABS warning lamp on
- TCS/ESP warning lamp comes on.
- Messages shown in SID.
- Steering column lock not working.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Control Module not Added

System reaction to a fault:
- No ABS function
- No TCS/ESP function

Diagnostic help

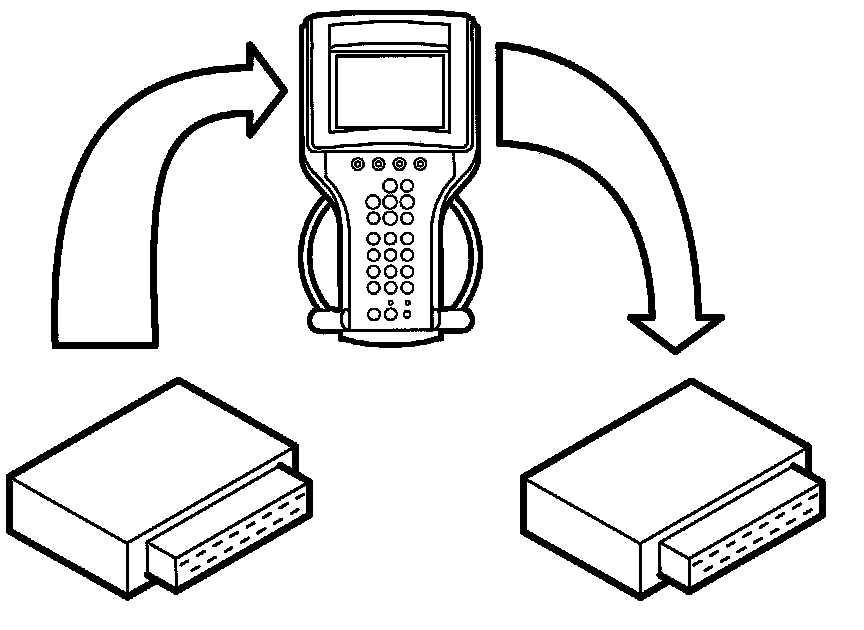

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
