C0548 01

C0548 01

SCL Internal Failure







Fault symptom
- Cannot turn key.
- Messages shown in SID.
- Steering column lock not working.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics runs when key is inserted.

Fault criteria:
- Hall sensor, locked, short circuit to B+.

System reaction to a fault:
- Steering column lock deactivated.
- DTC B3948 generated in CIM.

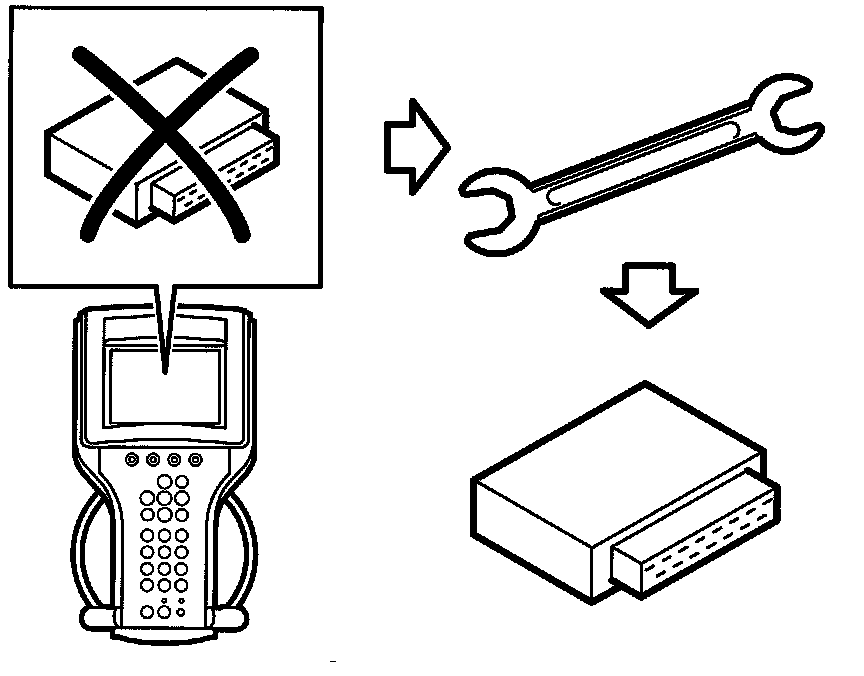

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
