C0547 04

C0547 04

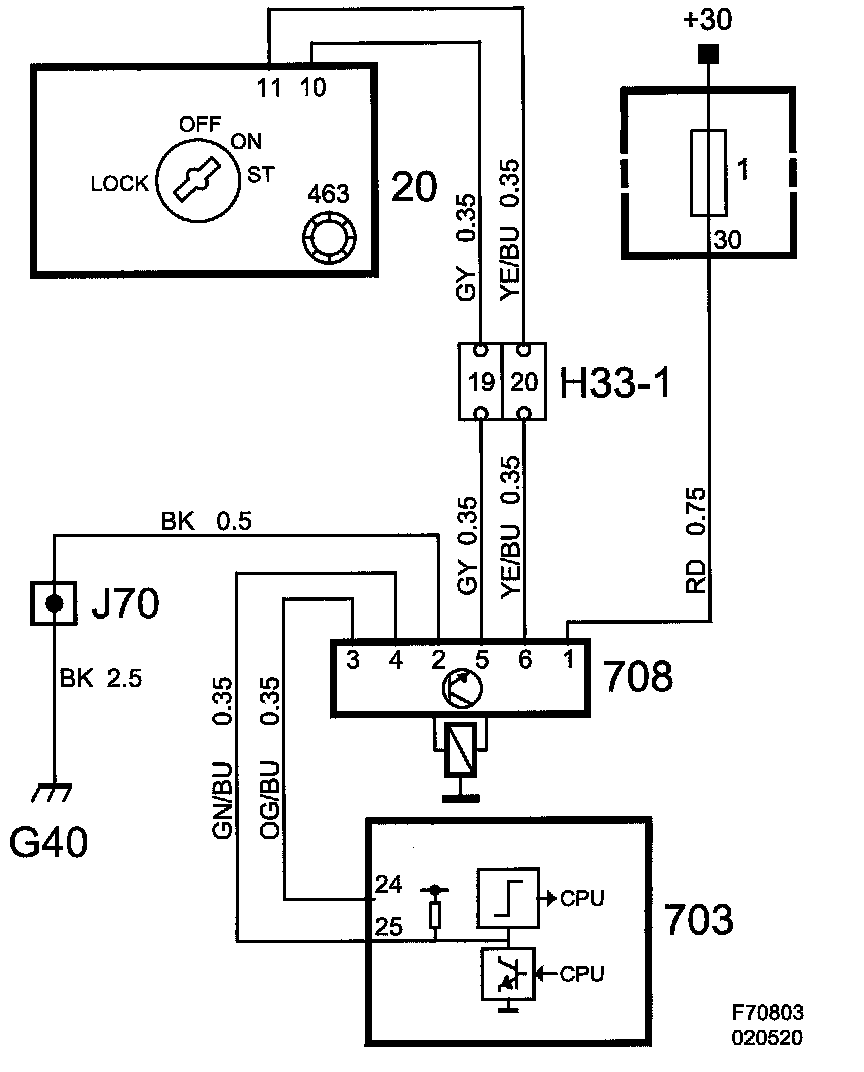

SCL-ISM, Unlocked & Secured Circuit, Open







Fault symptom
- Messages shown in SID.
- Engine does not start.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics carried out during locking before and after lock cylinder movement and only after during unlocking.

Fault criteria:
- ISM-SCL lead, open circuit.

System reaction to a fault:
- The control module does not allow starter motor cranking.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- SCL Voltage, Unlocked and Secured
- Key Capture. Steering Unlocked and Secured
(See also description of readings/activations in diagnostic tool)
