C0544

C0544 00

Steering Angle Sensor, Internal Failure







Fault symptom
- ESP warning lamp on.

On-board diagnosis

Type of diagnosis:
- Diagnostics run each time control module "wakes".

Enable criteria:
- Ignition ON.

Fault criteria:
- Timeout or fault in the check sum in the response received.

System reaction to a fault:
- Steering wheel angle sensor not working.

Diagnostic help

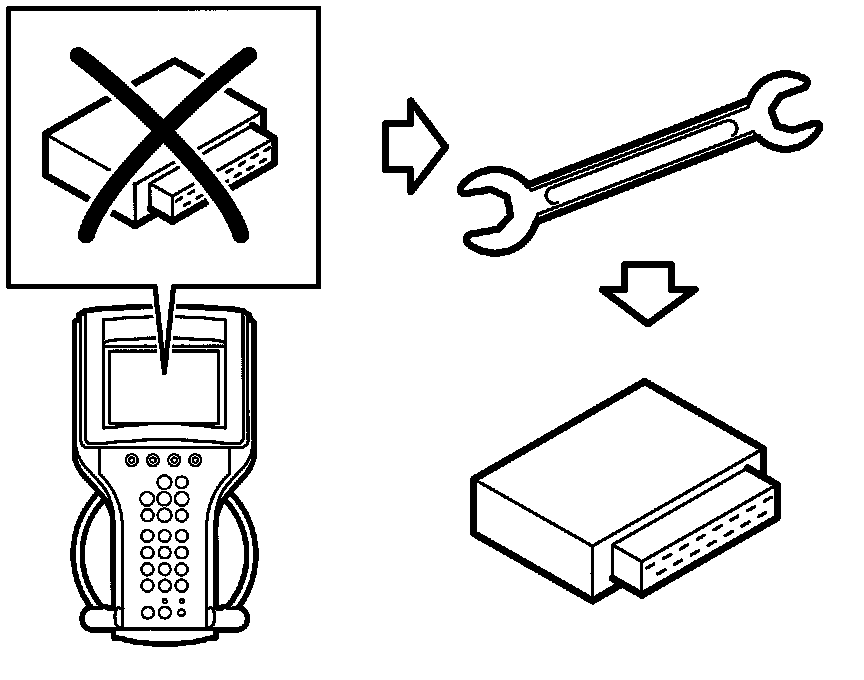

- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
