C0460 00

C0460 00

Steering Angle Sensor, Internal Failure







Fault symptom
- ESP warning lamp on.

On-board diagnosis

Type of diagnosis:
- Diagnostics occurs when response from steering wheel angle sensor is received.

Enable criteria:
- Engine running.

Fault criteria:
- Fault message received from steering wheel angle sensor.

System reaction to a fault:
- No ESP function

Diagnostic help

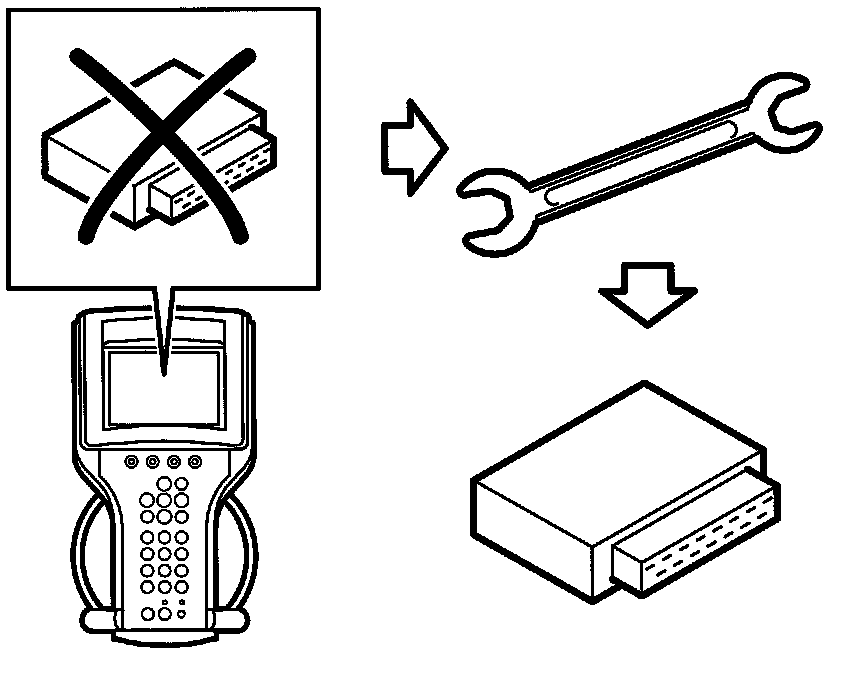

- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
