C0253

C0253 00

Steering Angle Sensor, Not Calibrated







Fault symptom
- ESP warning lamp on.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Non-calibrated steering wheel angle sensor.

System reaction to a fault:
- No ESP function

Diagnostic help

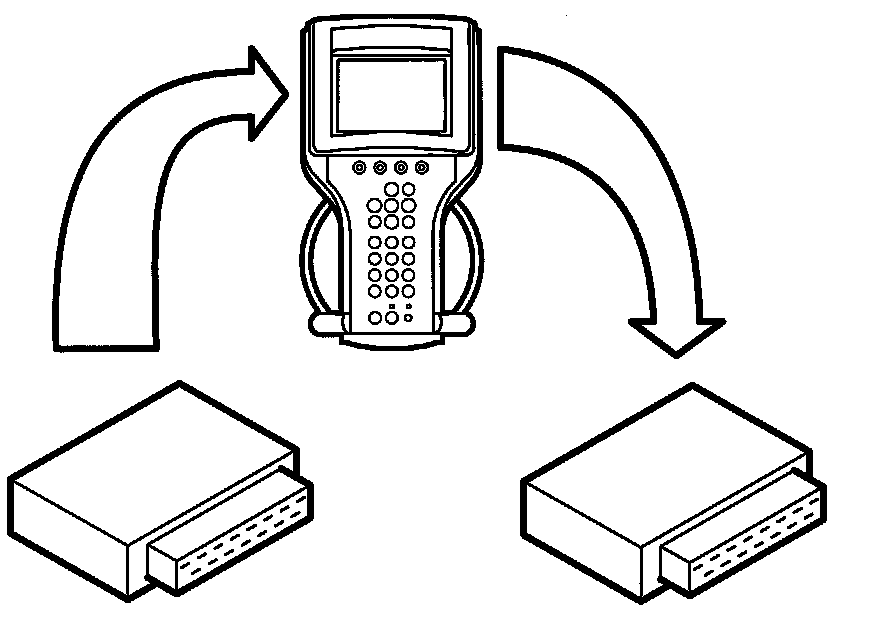

Functions in the diagnostic tool related to the fault:

Adjustment
- Steering Angle Sensor Calibration
(See also description of readings/activations in diagnostic tool)
