C0151 04

C0151 04

TCS/ESP Feed Valve Right Front/Left Rear Circuit, Open







Fault symptom
- TCS/ESP warning lamp comes on.
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.
- Valve activated

Fault criteria:
- When voltage on output exceeds 2 V.

System reaction to a fault:
- No TCS/ESP function

Diagnostic help

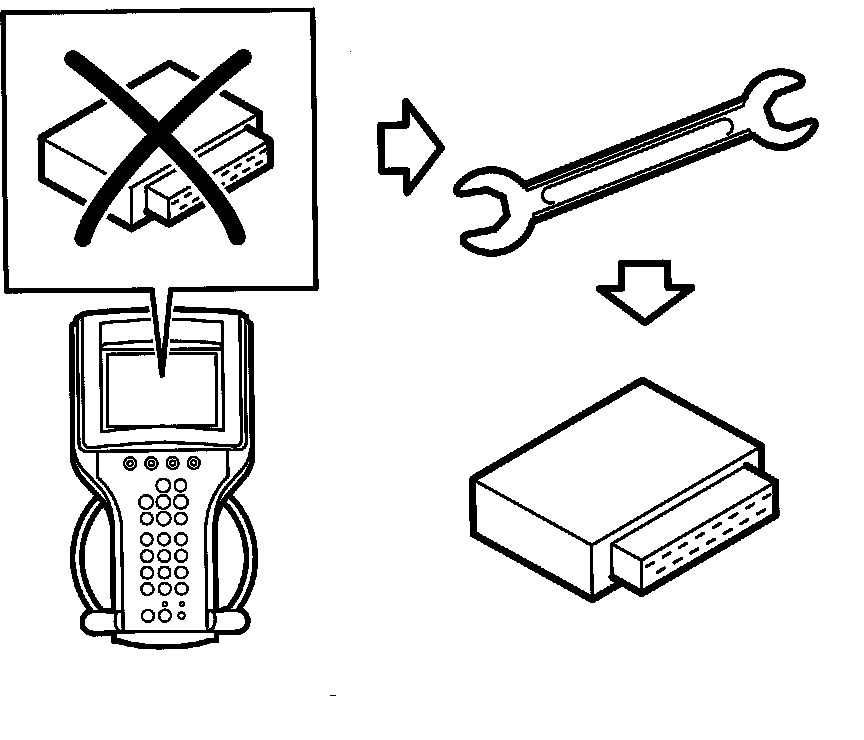

- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Diagnostic help

Diagnosis regards:
- Electrical fault in the component.

Functions in the diagnostic tool related to the fault:

Test value:
- TC/ESP Feed Valve RF / LR

Activate:
- TC/ESP Feed Valve RF / LR
(See also description of readings/activations in diagnostic tool)
