C0141 02

C0141 02

TCS/ESP Feed Valve Left Front/Right Rear Circuit, Short to Ground







Fault symptom
- Warning lamp lights.
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- When voltage on output is below 2 V.

System reaction to a fault:
- No ABS function
- No TCS/ESP function

Diagnostic help

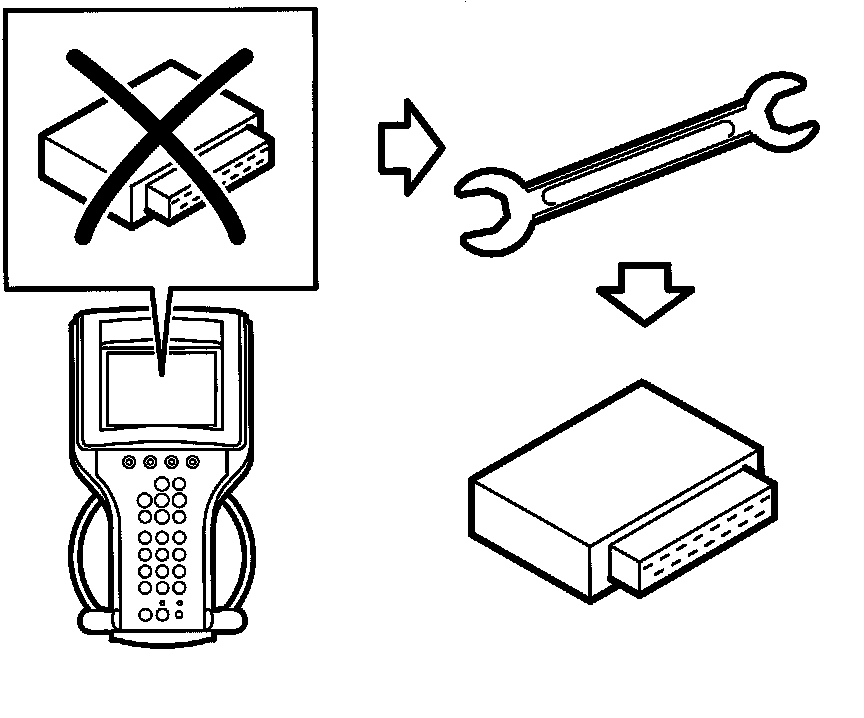

- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Diagnostic help

Diagnosis regards:
- Electrical fault in the component.

Functions in the diagnostic tool related to the fault:

Test value:
- TC/ESP Feed Valve LF / RR

Activate:
- TC/ESP Feed Valve LF / RR
(See also description of readings/activations in diagnostic tool)
