C0080 05

C0080 05

Left Right Outlet Valve Circuit, Open/Short to B+







Fault symptom
- ABS warning lamp on
- Messages shown in SID.
- Steering column lock not working.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- When voltage on output exceeds 2 V.

System reaction to a fault:
- No ABS function
- No TCS/ESP function

Diagnostic help

Diagnosis regards:

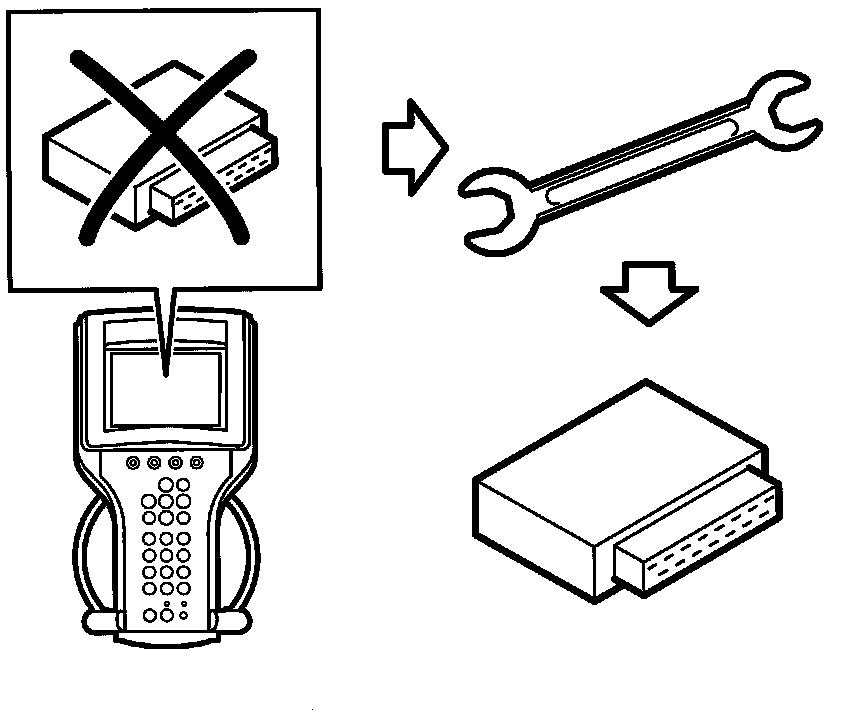

- Electrical fault in the component.

Functions in the diagnostic tool related to the fault:

See Reading:
- Outlet Valve LR

Activate:
- Outlet Valve LR
(See also description of readings/activations in diagnostic tool)
