C0070 05

C0070 05

Right Front Outlet Valve Circuit, Open/Short to B+







Fault symptom
- ABS warning lamp on
- Messages shown in SID.
- Steering column lock not working.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.
- Valve activated

Fault criteria:
- When voltage on output exceeds 2 V.

System reaction to a fault:
- No ABS function
- No TCS/ESP function

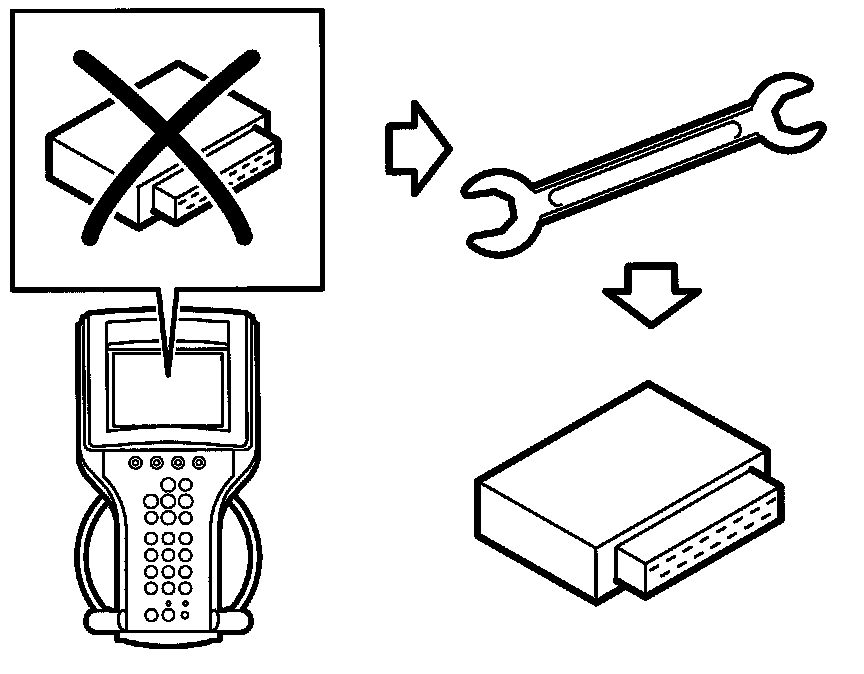

Diagnostic help

Diagnosis regards:
- Electrical fault in the component.

Functions in the diagnostic tool related to the fault:

See Reading:
- Outlet Valve RF

Activate:
- Outlet Valve RF
(See also description of readings/activations in diagnostic tool)
