C0070 02

C0070 02

Right Front Outlet Valve Driver Circuit, Short to Ground







Fault symptom
- ABS warning lamp on
- Messages shown in SID.
- Steering column lock not working.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Open circuit between the relay and solenoid
- When voltage on output is below 2 V.

System reaction to a fault:
- No ABS function
- No TCS/ESP function

Diagnostic help

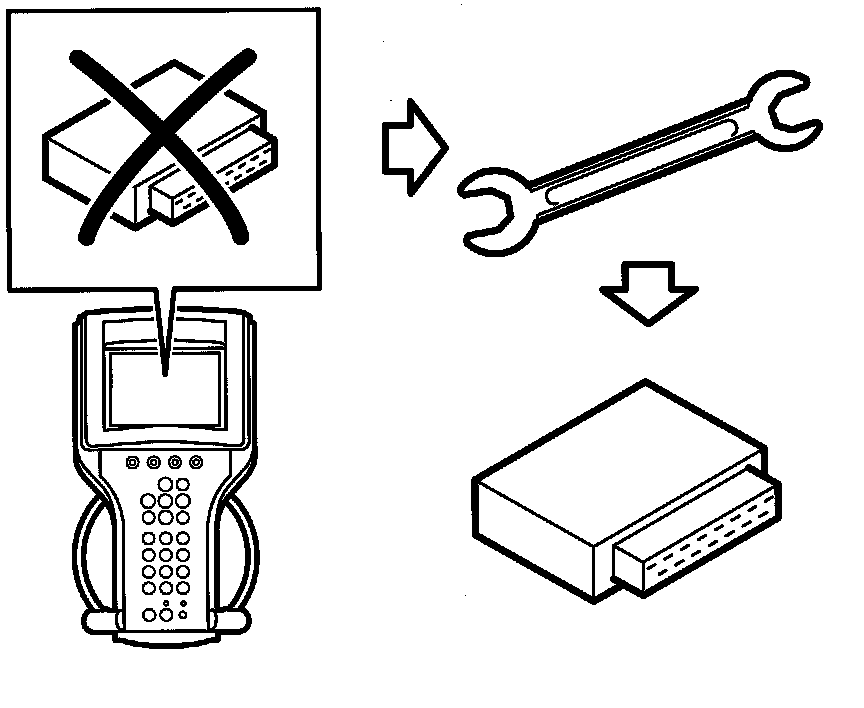

- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Diagnostic help

Diagnosis regards:
- Electrical fault in the component.

Functions in the diagnostic tool related to the fault:

See Reading:
- Outlet Valve RF

Activate:
- Outlet Valve RF
(See also description of readings/activations in diagnostic tool)
