B3947

B3947 00

CIM or SCL Not Added







Fault symptom
- Cannot turn key.
- Error message is shown on the display.

On-board diagnosis

Type of diagnosis:
- Diagnostics carried out with each signal received from CIM to the steering column lock.

Enable criteria:
- Diagnostics runs when key is inserted.

Fault criteria:
- Incorrect response from CIM.

System reaction to a fault:
- Steering column lock not working.

Diagnostic help

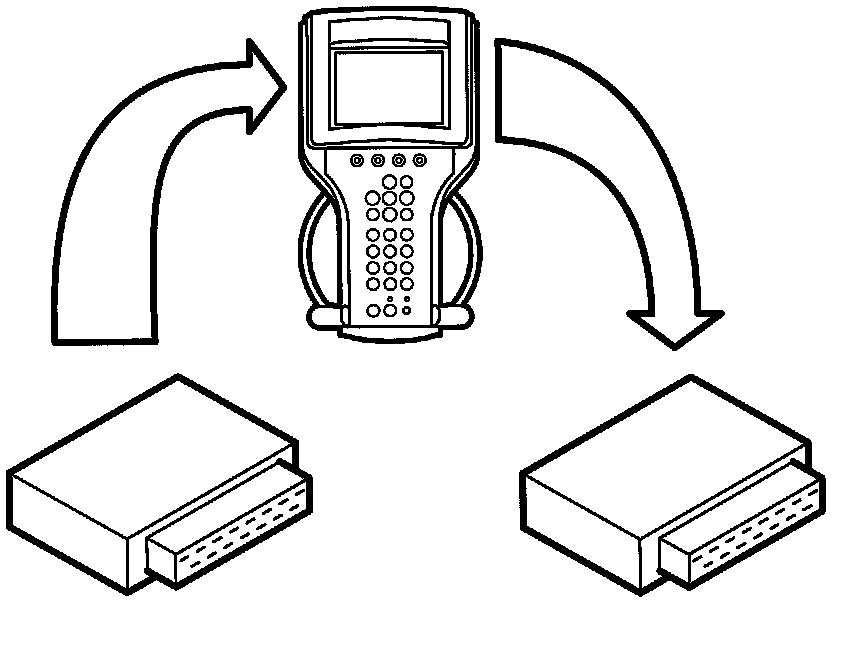

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
