B3946

B3946 00

SCL Not Added







Fault symptom
- Error message is shown on the display.
- Cannot turn key.
- Engine does not start.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics run when key is inserted and removed.

Fault criteria:
- SCL Not Added

System reaction to a fault:
- The control module does not allow starter motor cranking.

Diagnostic help

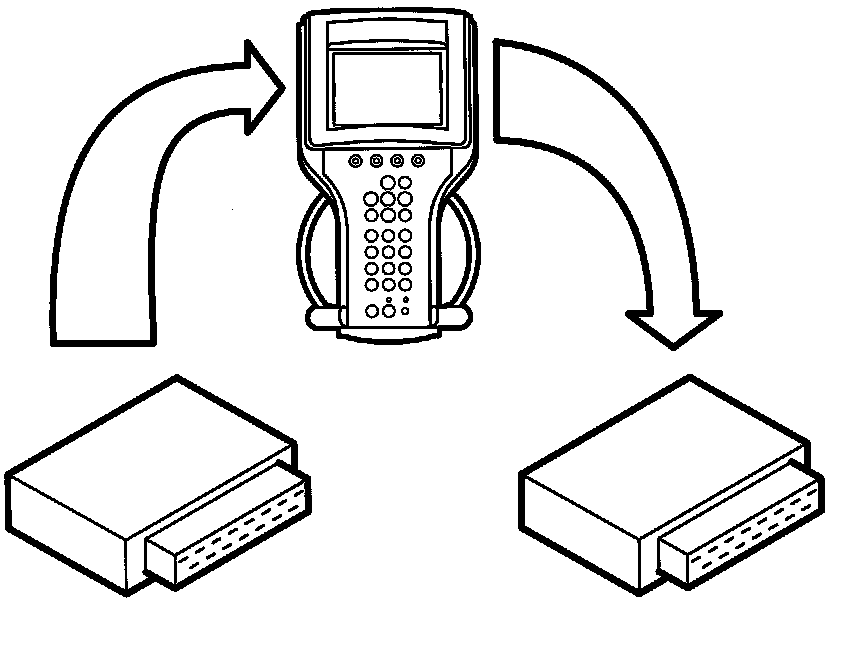

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
