B3925

B3925 00

BCM or CIM Not Added







Fault symptom
- Messages shown in SID.
- The engine may not start.

On-board diagnosis

Type of diagnosis:
- Continuous
- Diagnostics carried out according to valid fix code from the transponder.

Enable criteria:
- Diagnostics runs when key is inserted.

Fault criteria:
- Incorrect immobilizer code received from BCM.

Diagnostic help

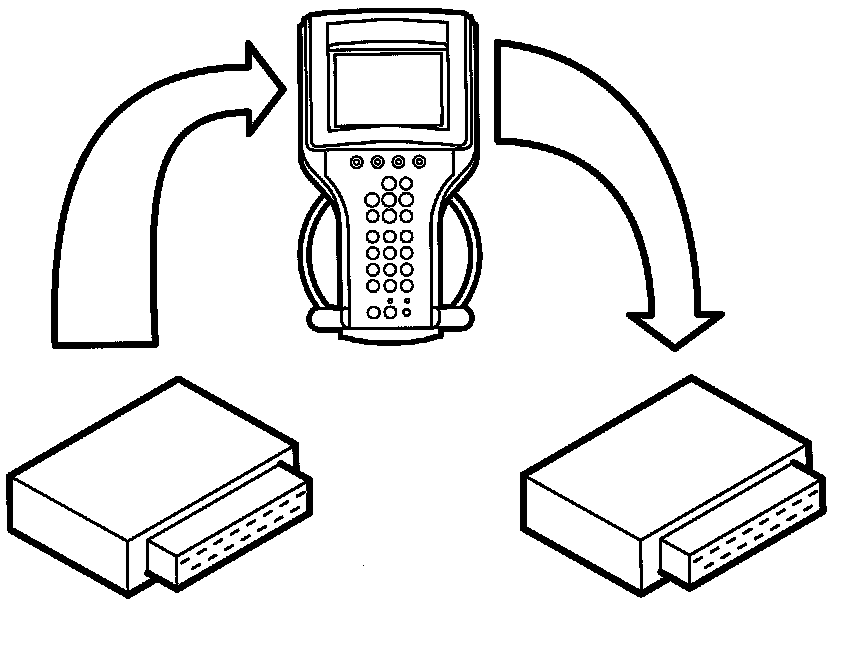

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
