B3902 71

B3902 71

BCM or CIM Not Added







Fault symptom
- Messages shown in SID.
- Car does not start.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics run when ignition is ON.

Fault criteria:
- Incorrect immobilizer code received from CIM.

System reaction to a fault:
- The immobilizer-related functions are switched off.

Diagnostic help

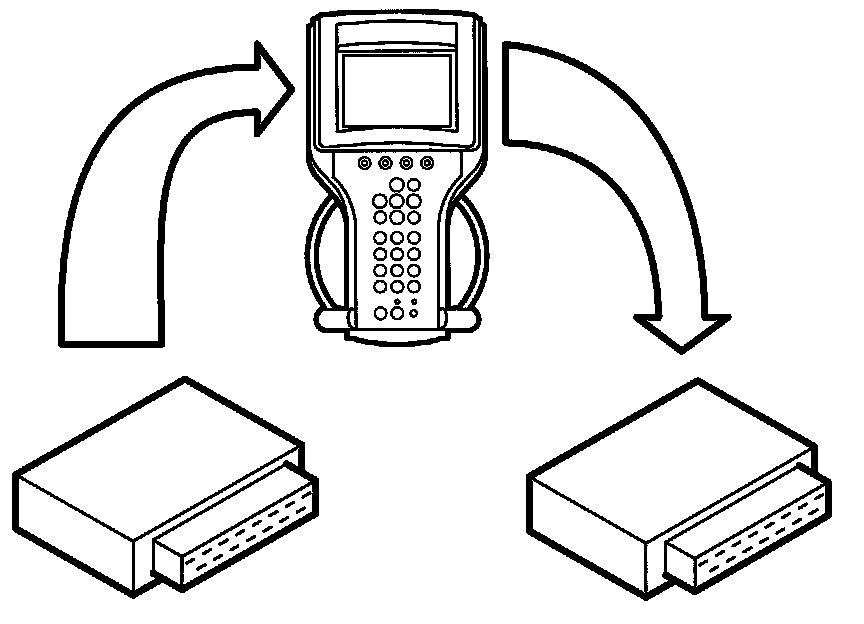

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
