B3902 70 - 04

B3902 70

DVD or ICM Not Added







Fault symptom
- Messages shown in SID.
- Malfunction in one of the following systems:
- DVD unit.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- DVD not joined with ICM.

System reaction to a fault:
- The immobilizer-related functions are switched off.

Diagnostic help
- Control module was not added.

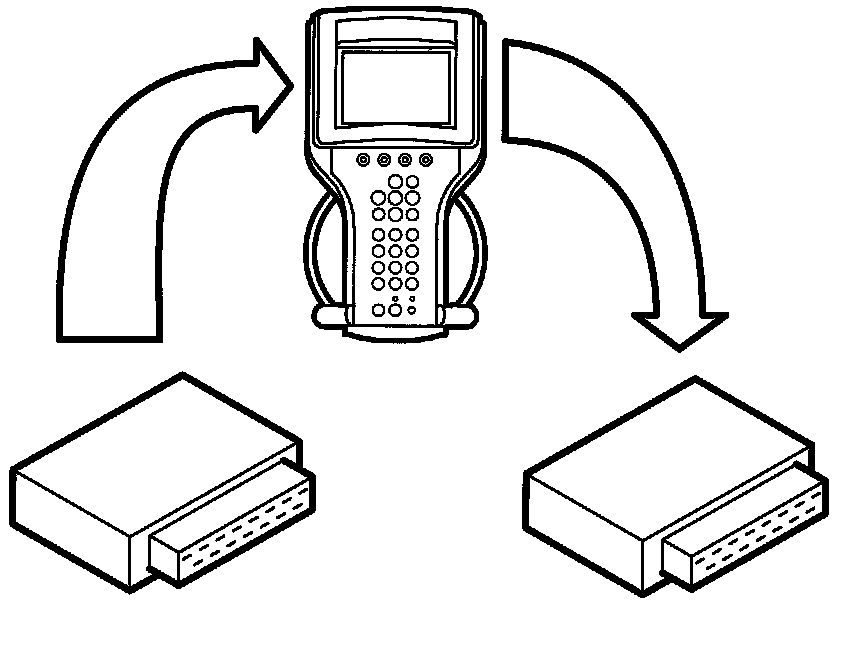

- See "Procedure after fitting the control module"

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
