B3902 70 - 01

B3902 70

AMP 1 or ICM Not Added







Fault symptom
- Messages shown in SID.
- Audio system not functioning.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- AMP1 not joined with ICM.

System reaction to a fault:
- The immobilizer-related functions are switched off.

Diagnostic help
- Control module was not added.

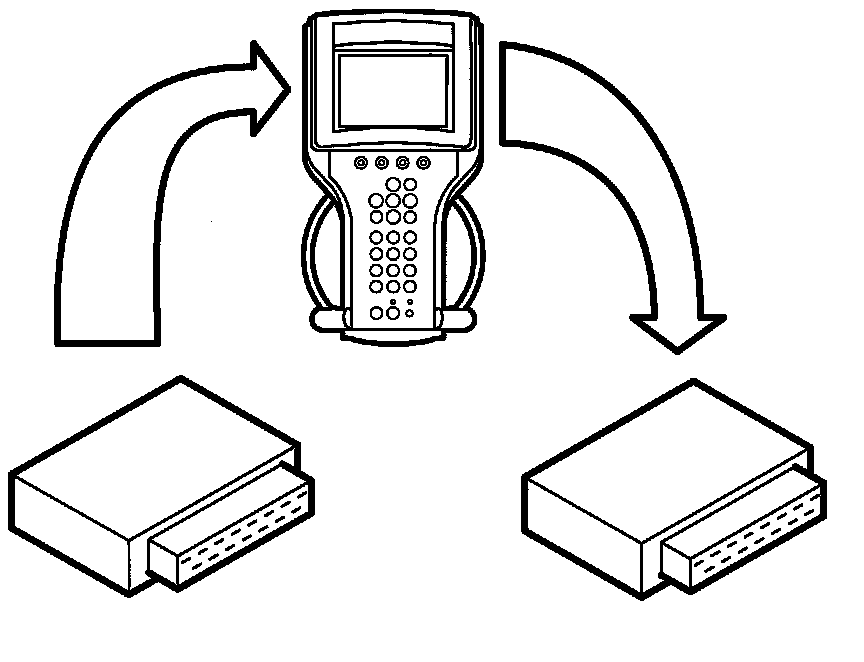

- See "Procedure after fitting the control module"

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
