B3867 04

B3867 04

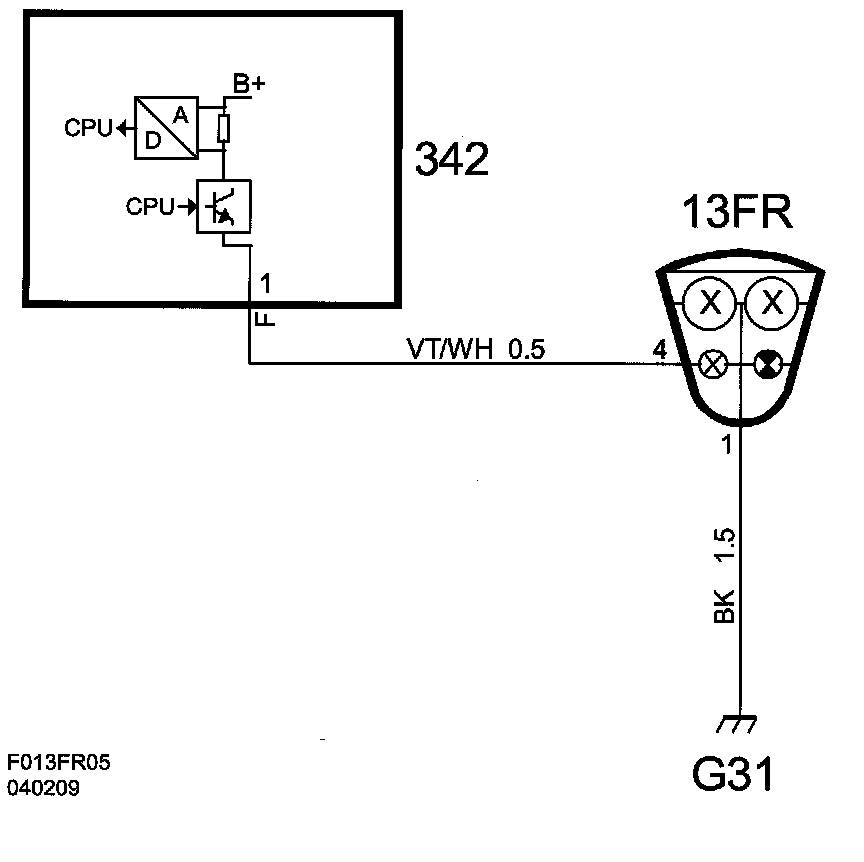

Parking Light Right Front Circuit, Open







Fault symptom
- Front right parking lights, malfunction.
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Parking lights on.

Fault criteria:
- Current consumption is below 20 mA.

System reaction to a fault:
- None

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Activation:
- Parking Light Right Front
