B3866 0B

B3866 0B

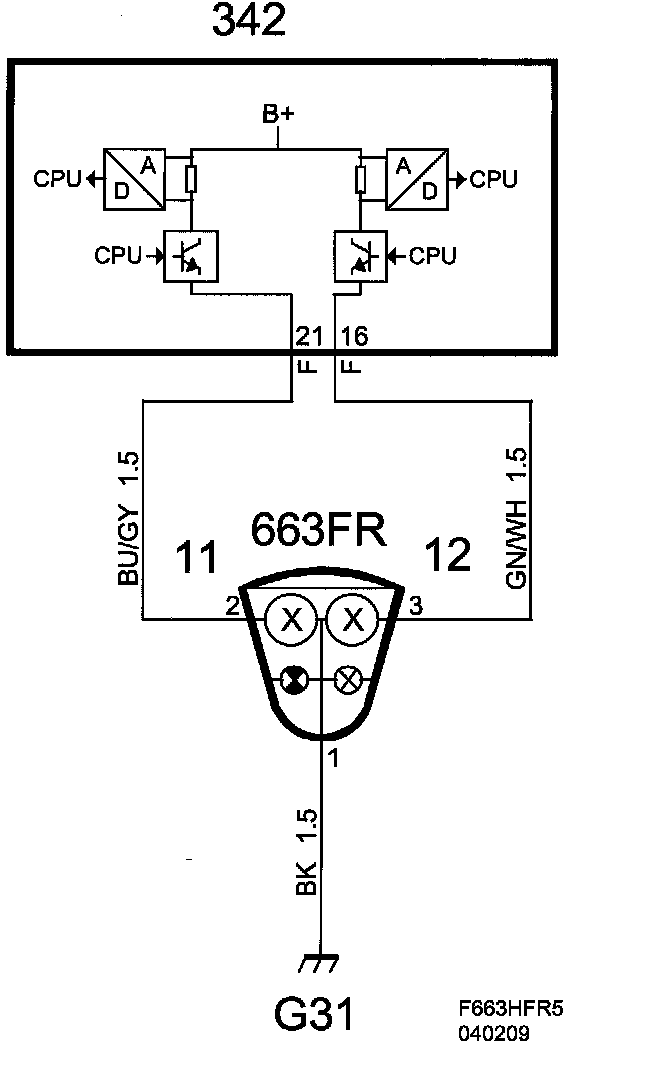

High Beam Right Circuit, Current above Threshold







Fault symptom
- Messages shown in SID.
- Right-hand main beam, faulty function.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Main beam lit.

Fault criteria:
- Current consumption is between 7.9 and 30 A.

System reaction to a fault:
- None

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Activation:
- High Beam Right
