B3832

B3832 45

Information: Anti Pinch Not Learned







Fault symptom
- Express up not working.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- During electric window lift operation.

Fault criteria:
- Stroke and window position not stored or invalid.

System reaction to a fault:
- Control module deactivates "express up" function until DTC is cleared.

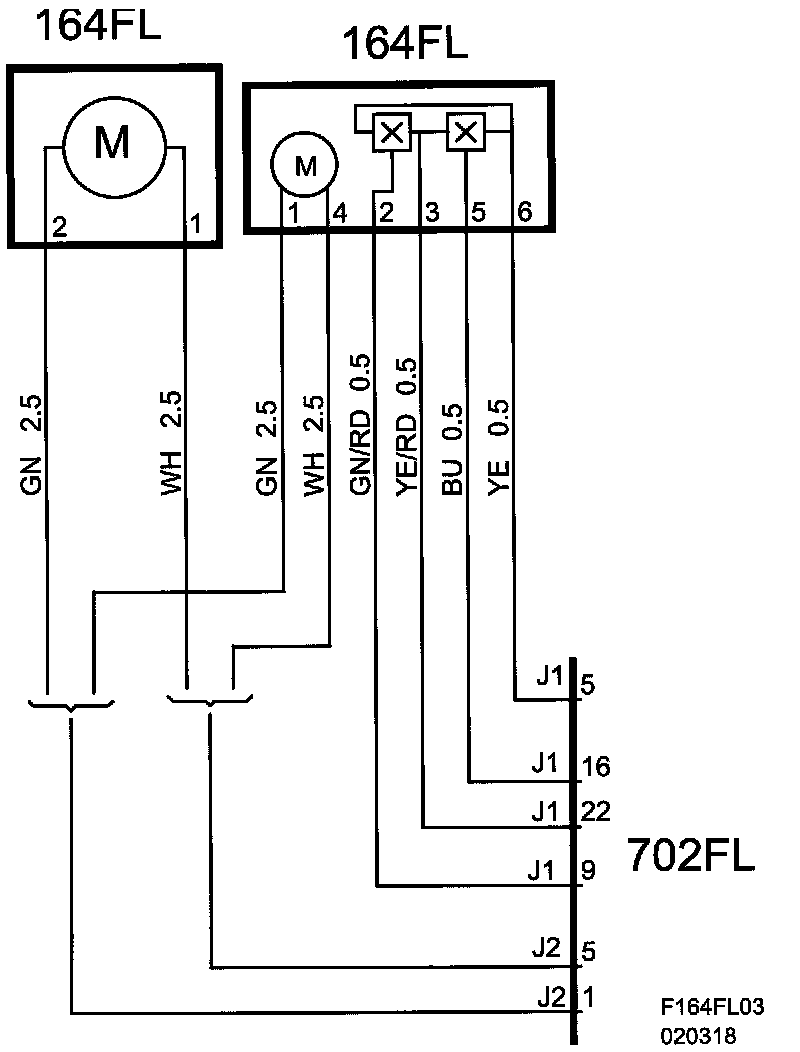

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.
