B3797 02 - 01

B3797 02

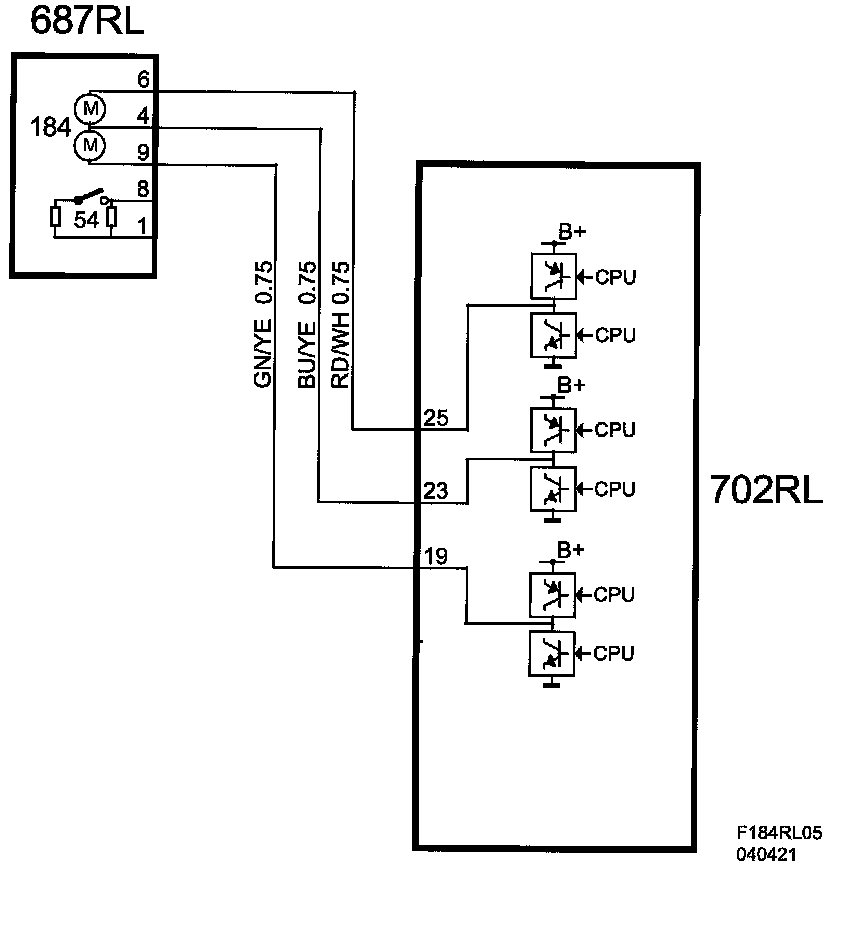

TSL Motor Circuit, Short to Ground







Fault symptom
- TSL out of order.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- When the car is locked/unlocked.

Fault criteria:
- Control module input short circuit to ground.

System reaction to a fault:
- When the fault is not active, the locking motor attempts to lock.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Lock Motor Left Rear Door TSL-Locked
(See also description of readings/activations in diagnostic tool)
