B3685 59

B3685 59

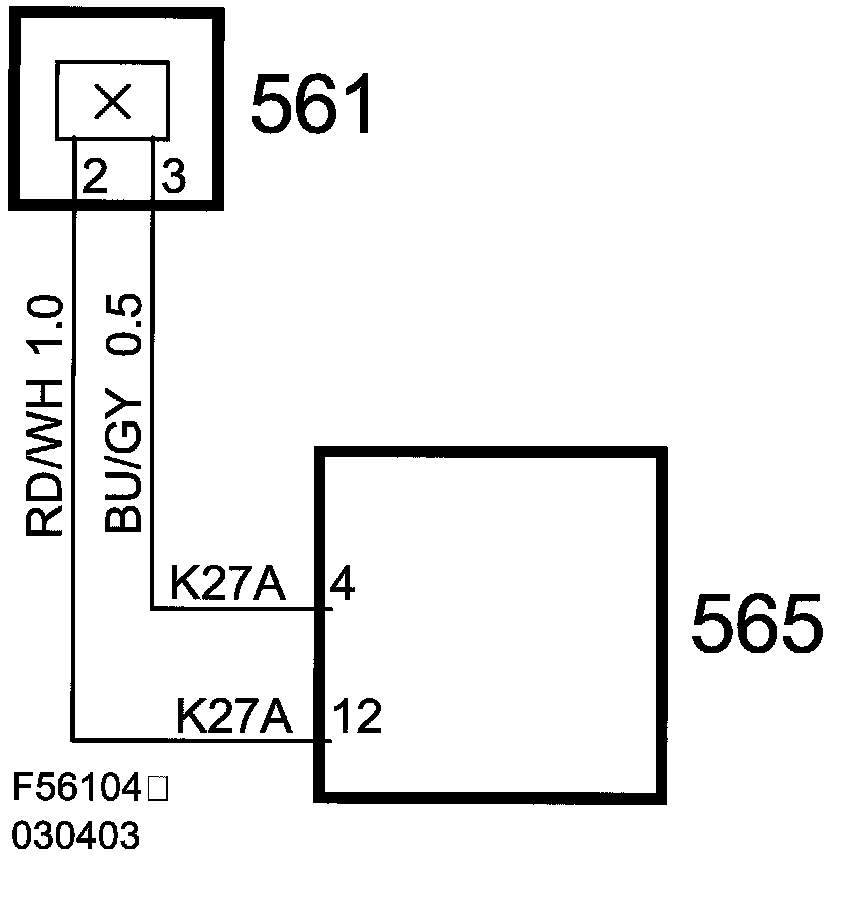

1st Bow Ready to Latch, Position Sensor, Timeout







Fault symptom
- Messages shown in SID.
- The soft top stops somewhere in its cycle.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.
- Soft top opening/closing activated

Fault criteria:
- Too long before position sensor changes status

Diagnostic help

Diagnosis regards:
- Check that the bow is locked within the specified time

Functions in the diagnostic tool related to the fault:

Test value:
- 1st Bow Ready to Latch
(See also description of readings/activations in diagnostic tool)
