B3685 58

B3685 58

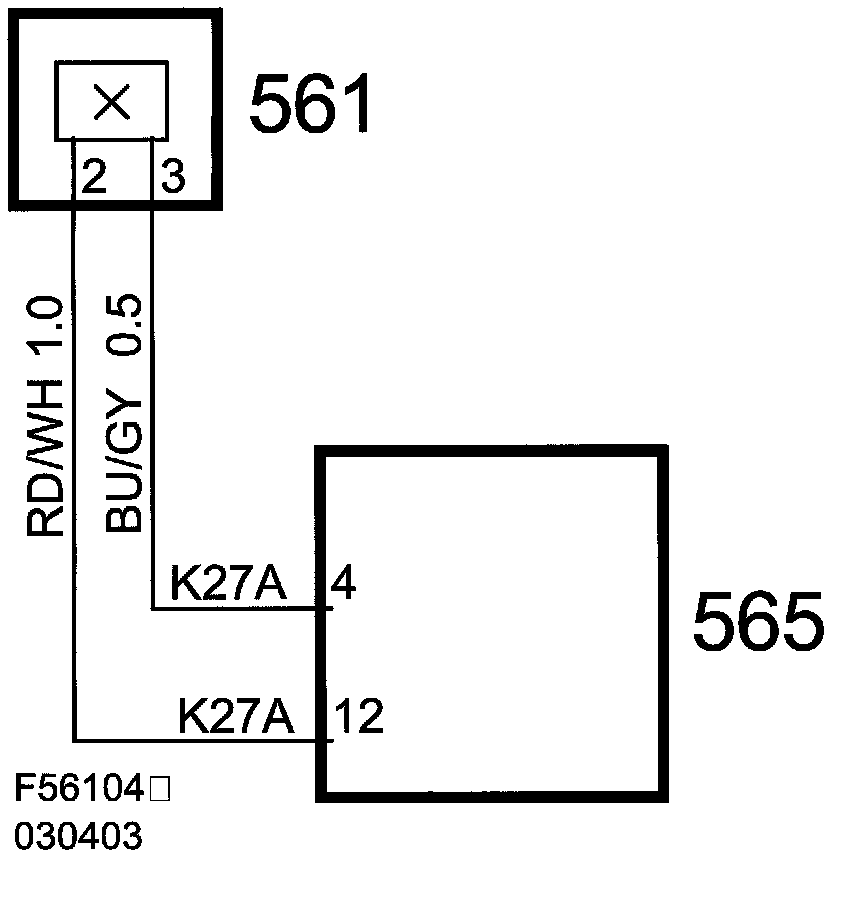

1st Bow Ready to Latch, Position Sensor, Wrong Response







Fault symptom
- Messages shown in SID.
- The soft top stops somewhere in its cycle.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.
- Soft top opening/closing activated

Fault criteria:
- The position sensor assumes impermissible position while soft top is in operation

Diagnostic help
- The distance between the sensor and the sensor detection point must not exceed 1.9 mm.
- The soft top is operated in sequences. Each sequence must begin with the sensors in a position that matches the movement pattern.
