B3682 0B

B3682 0B

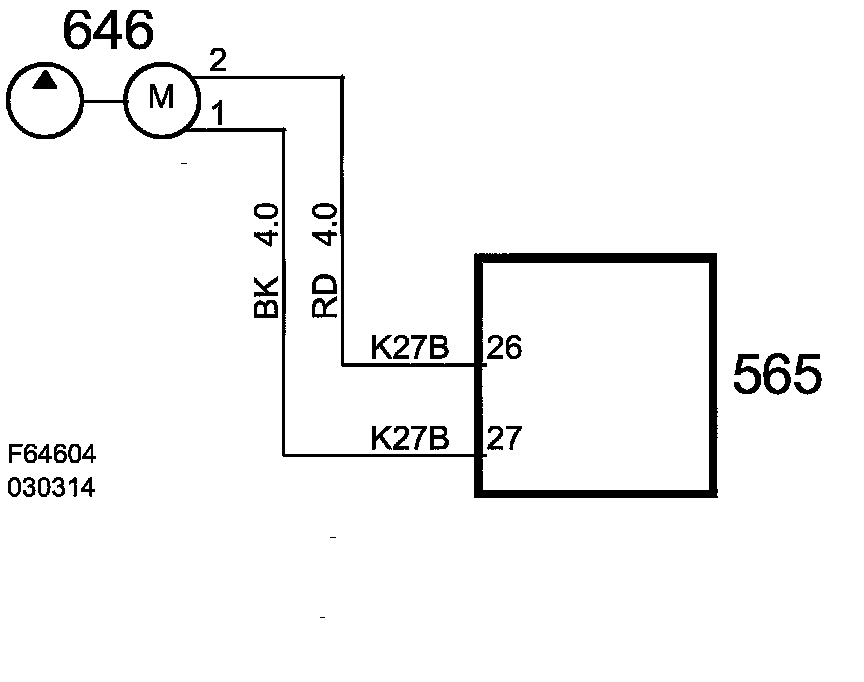

Pump Motor Left Turn Circuit, Current above Threshold







Fault symptom
- Messages shown in SID.
- Soft top cannot be operated

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.
- Output activated.

- The following diagnostic trouble codes may not be generated:
- B3681

Fault criteria:
- Current strength on output exceeds 35 A

Checking the wiring harness
- Jiggle the wiring harness at several points to detect intermittent breaks or short circuits. Check also the connector for oxidation or loose pins.

Diagnostic help

Functions in the diagnostic tool related to the fault:

Test value:
- Pump Motor

Activation:
- Pump Motor
(See also description of readings/activations in diagnostic tool)
