B3681 01

B3681 01

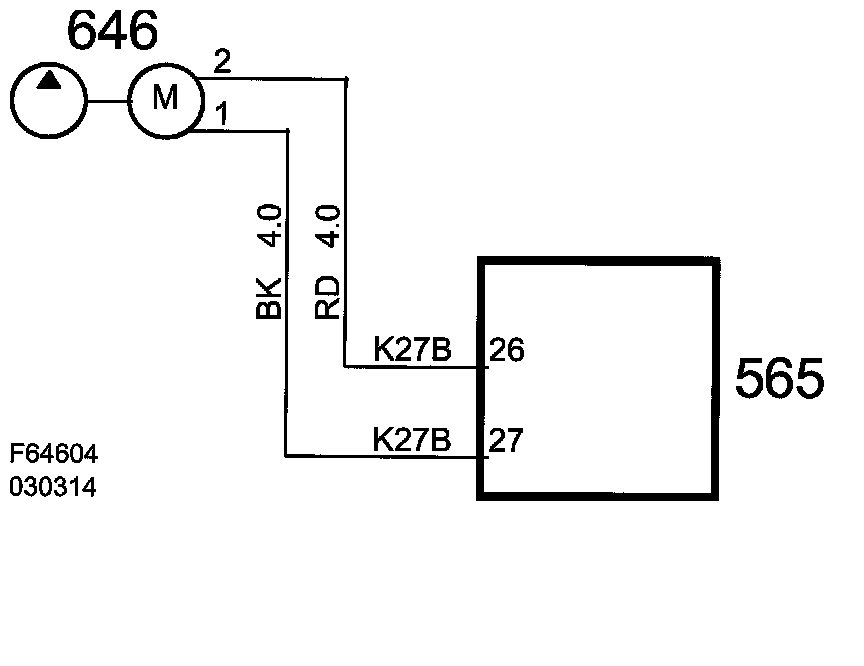

Pump Motor Right Turn Circuit, Short to B+







Fault symptom
- Soft top cannot be operated
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.
- Output NOT activated.

The following diagnostic trouble codes may not be generated:
B3682

Fault criteria:
- Output voltage exceeds 1.6 V ± 0.2 V

Checking the wiring harness
- Jiggle the wiring harness at several points to detect intermittent breaks or short circuits. Check also the connector for oxidation or loose pins.

Diagnostic help

Functions in the diagnostic tool related to the fault:

Test value:
- Pump Motor

Activation:
- Pump Motor
(See also description of readings/activations in diagnostic tool)
