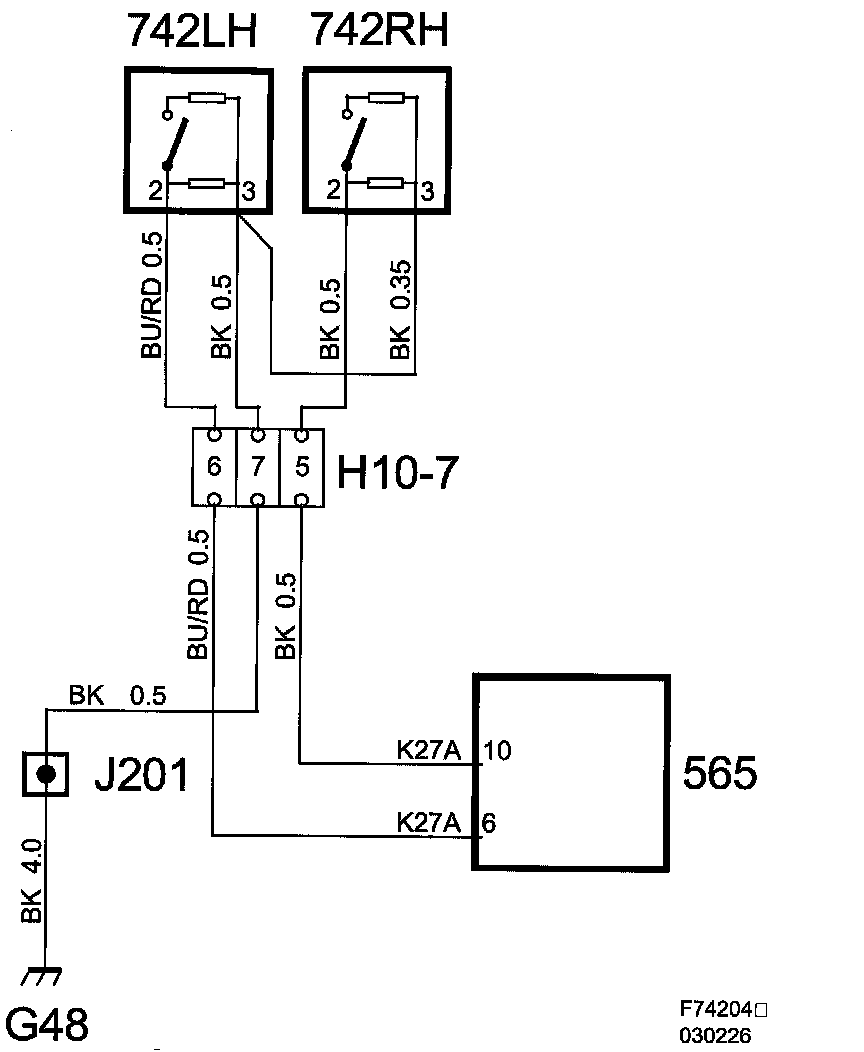

Rollover Bar Right Sensor Circuit, Short to Ground







Fault symptom
- Soft top cannot be operated
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Control module output voltage is below 1.9 ± 0.2 V

System reaction to a fault:
- Soft top cannot be operated

Checking the wiring harness
- Jiggle the wiring harness at several points to detect intermittent breaks or short circuits. Check also the connector for oxidation or loose pins.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Right Rollover Bar Down
(See also description of readings/activations in diagnostic tool)
