B3542 2B - 01

B3542 2B

Window Motor Hall Sensor 1, No Motion Detected







Fault symptom
- No express function, window up/down.

On-board diagnosis

Type of diagnosis:
- Diagnostics run when power window is operated.

Enable criteria:
- Ignition ON.

- The following DTCs are generated at the same time as this DTC:
- B3832

- This DTC will not be generated if the following DTCs exist:
- B3355

Fault criteria:
- No express function, window up/down.

System reaction to a fault:
- No express function, window up/down.

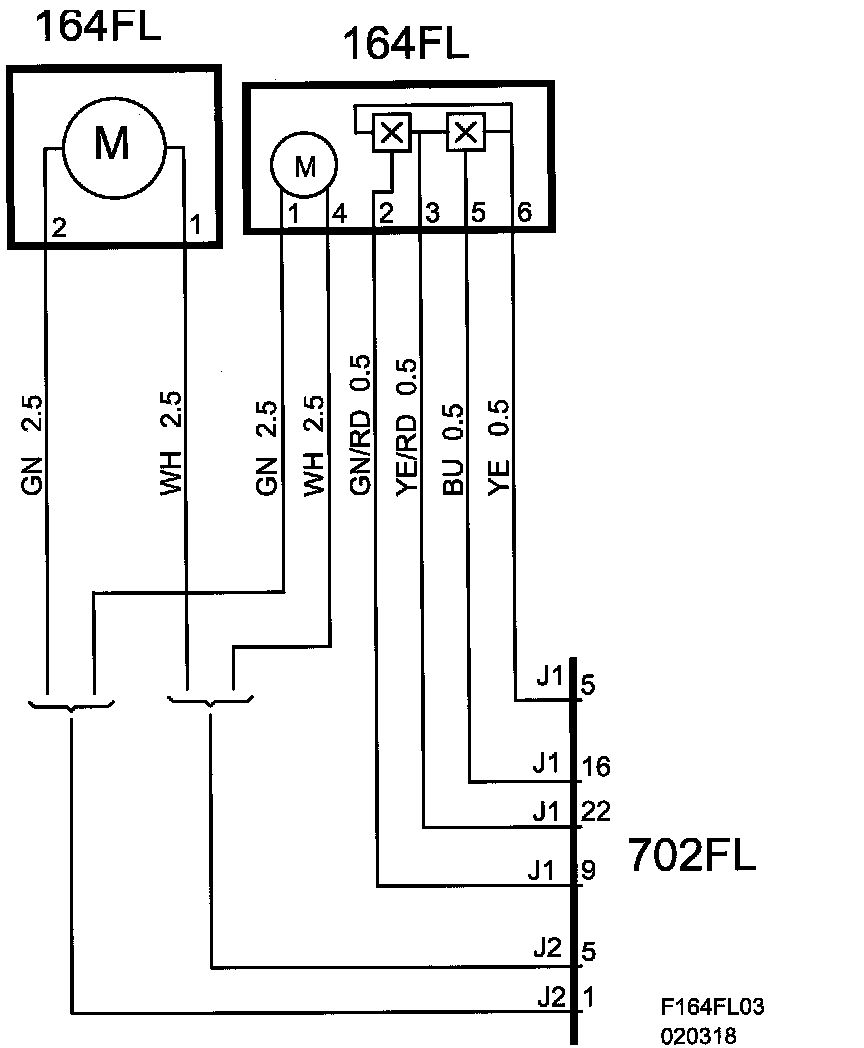

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.
