Front Axle Sensor Circuit, Not Plausible







Fault symptom
- Messages shown in SID.
- Headlamp beam adjustment not working.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Car speed over 10 km/hr for more than 5 s.
- Xenon lights on.

Fault criteria:
- Voltage on control module input is continually outside limit value.

System reaction to a fault:
- Headlamp beam adjustment is switched off.
- Headlamp reflectors adjusted to a lower position.

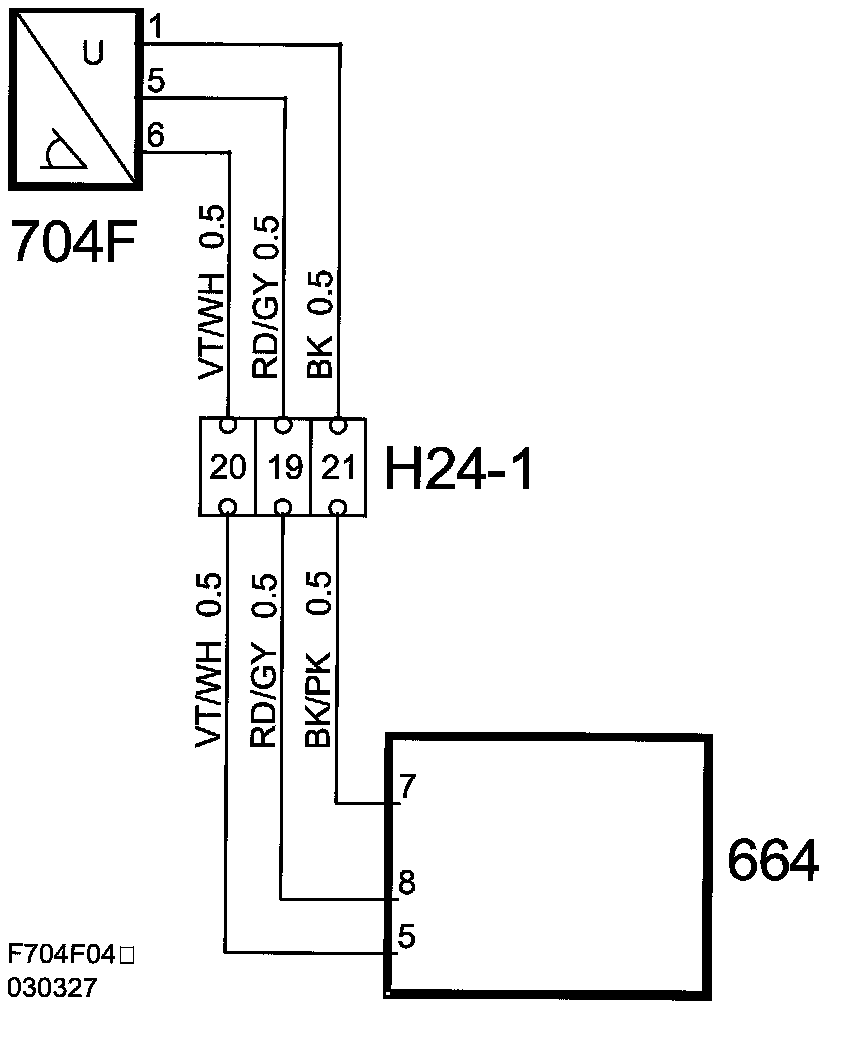

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help
- Before fault diagnosis begins, read the document "Safety and handling directions, xenon lights" under Technical description.
- DTC can be generated if any of the height sensors are incorrectly fitted.
- Height sensor lower limit value is 205 steps and upper limit value is 3980 steps.
