B3210 54 - 01

B3210 54

Window Motor Up Circuit, Overcurrent







Fault symptom
- Side window cannot be closed.

On-board diagnosis

Type of diagnosis:
- Diagnostics run when power window is operated.

Enable criteria:
- Ignition ON.

- The following DTCs are generated at the same time as this DTC:
- B3205

Fault criteria:
- Current through the engine is greater than the permitted calibrated value.

System reaction to a fault:
- Side window cannot be closed.

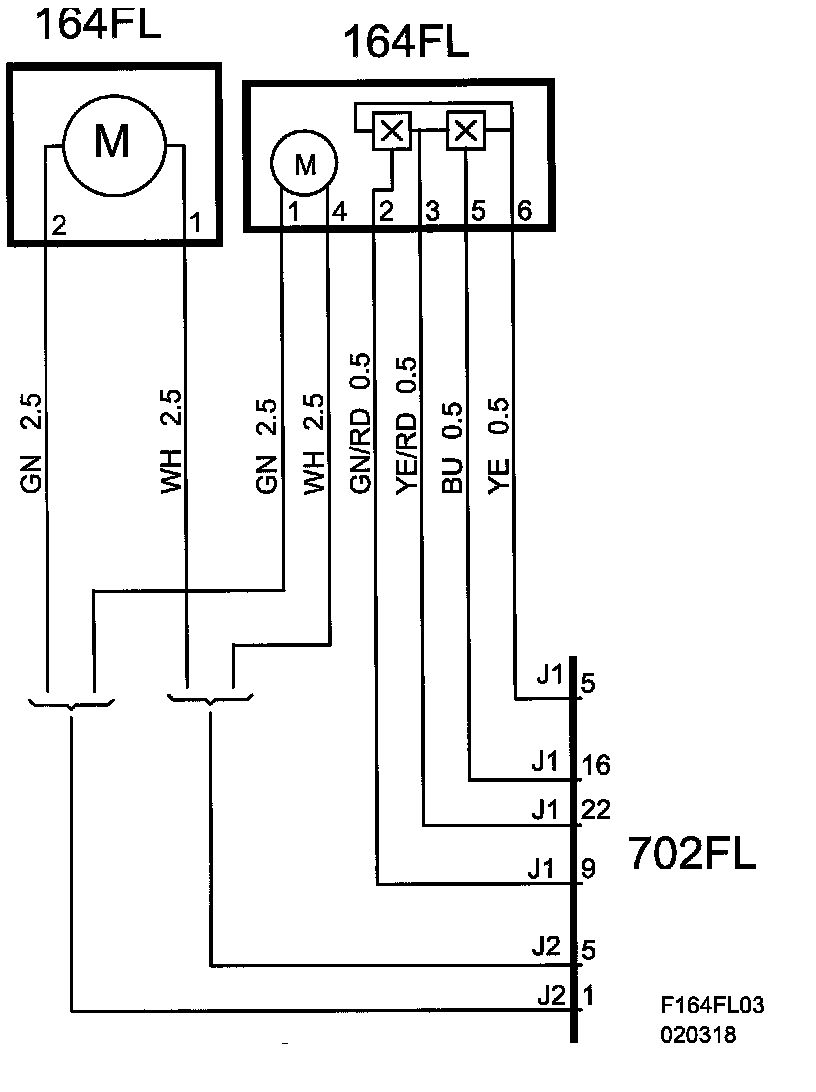

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Window Motor Driver Door
(See also description of readings/activations in diagnostic tool)
