B3210 06 - 01

B3210 06

Power Window Up, Open Circuit/Short to Ground







Fault symptom
- Side window cannot be closed.

On-board diagnosis

Type of diagnosis:
- Diagnostics run when power window is operated.

Enable criteria:
- Ignition ON.

Fault criteria:
- Current through the engine is less than the permissible calibrated value

System reaction to a fault:
- The motor attempts to raise the window during each new driving cycle.

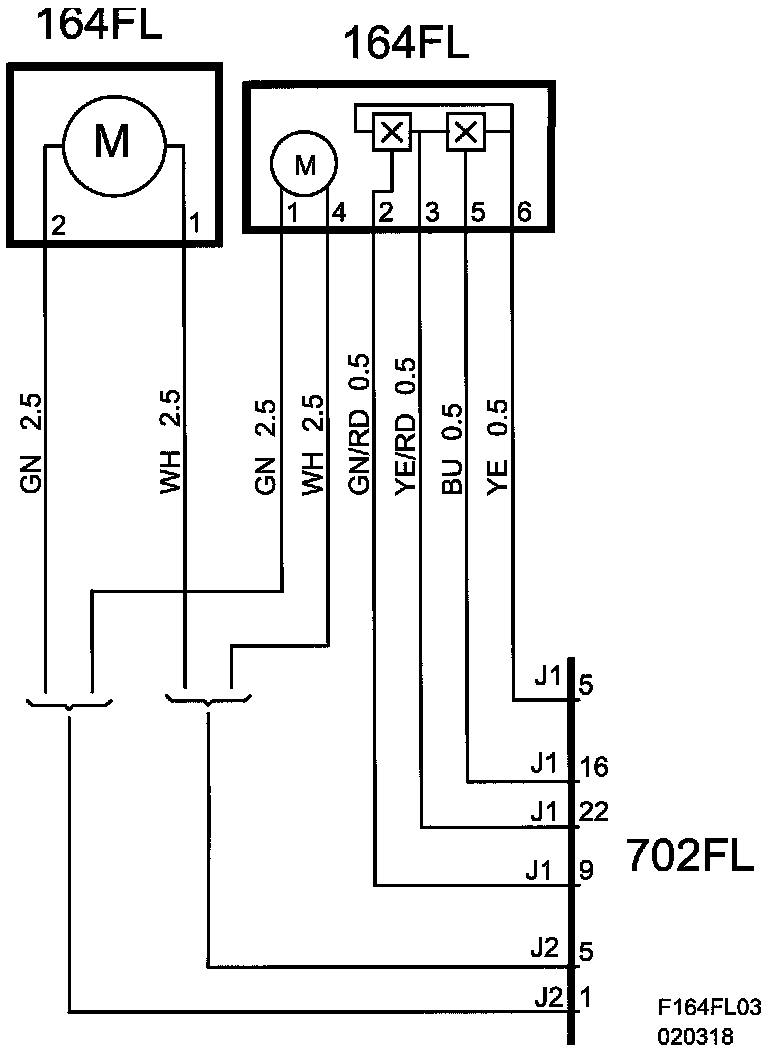

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Window Motor Driver Door
(See also description of readings/activations in diagnostic tool)
