B3205 01 - 01

B3205 01

Window Motor Down Circuit, Short to B+







Fault symptom
- Window lift down, out of order.

On-board diagnosis

Type of diagnosis:
- Diagnostics run when power window is operated.

Enable criteria:
- Ignition ON.

Fault criteria:
- Current through the engine is greater than the permitted calibrated value.

System reaction to a fault:
- For every new driving cycle, the motor tries to lower the window when the button is pressed.

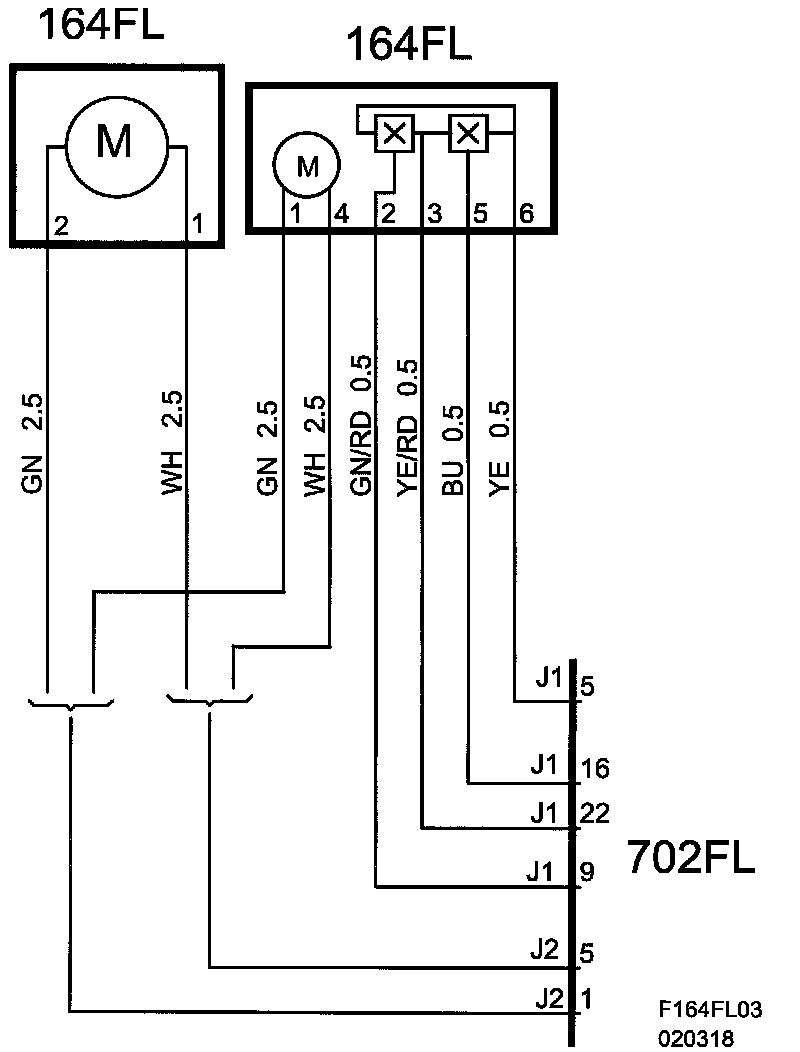

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Window Motor Driver Door
(See also description of readings/activations in diagnostic tool)
