B3200

B3200 61

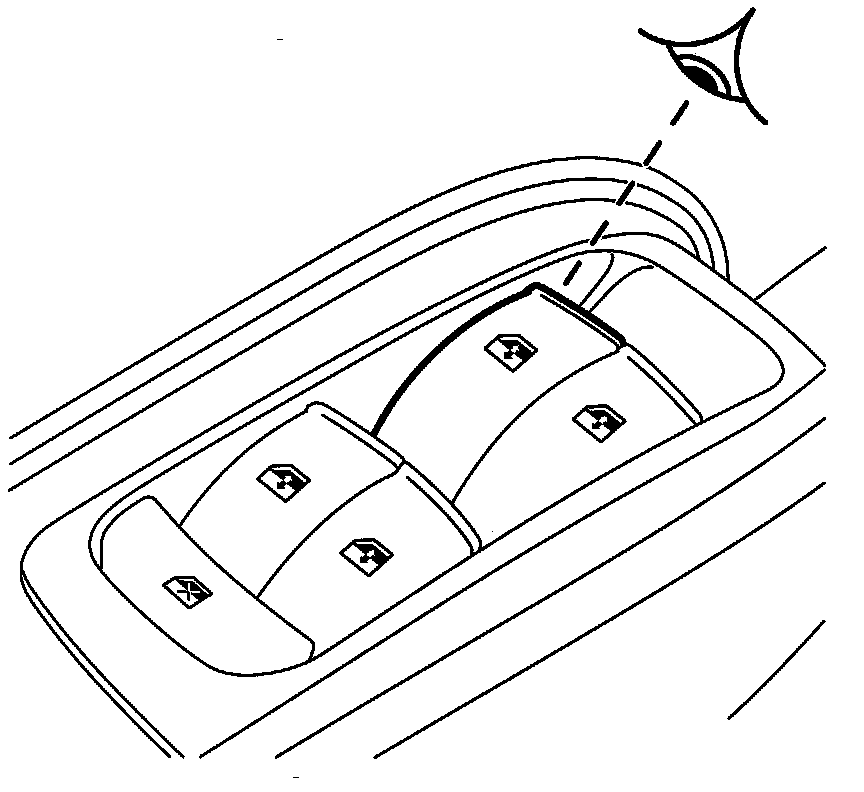

Driver Door Window Switches, Lockout Stuck







Fault symptom
- Electric window lift release button malfunction.

On-board diagnosis

Type of diagnosis:
- Each time the control module checks if the button is depressed or not.

Enable criteria:
- When electric window lifts are operated.

Fault criteria:
- Caused by the button being loaded more than 20 s.

System reaction to a fault:
- The control module determines that the button has not been pressed until it has returned to an inactive position and is depressed again.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Window Lockout Switch
(See also description of readings/activations in diagnostic tool)
