B3117

B3117 00

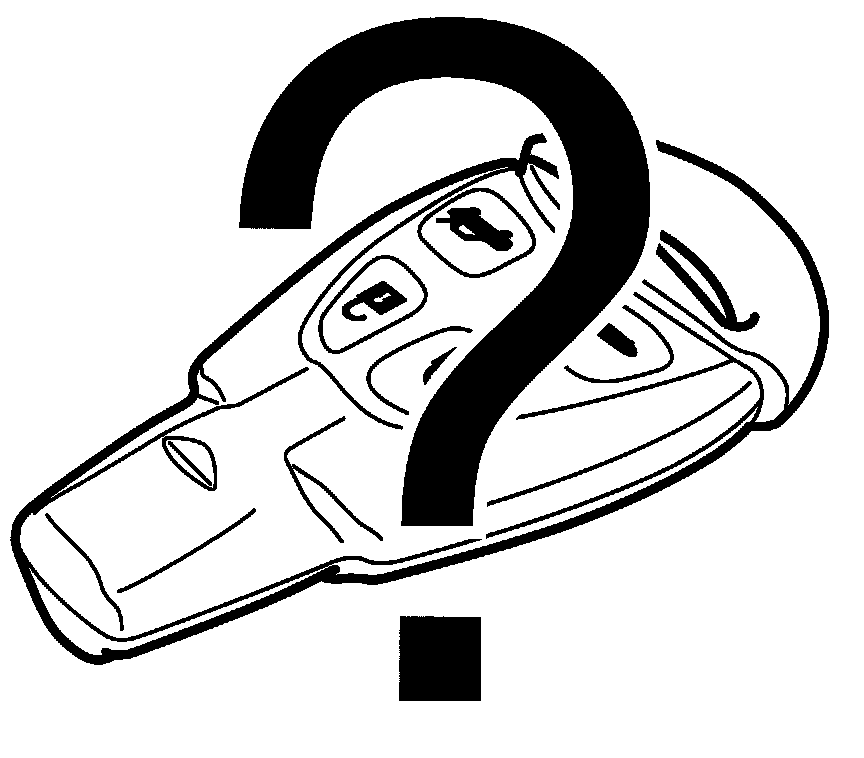

Remote Control 4, Wrong Code (May Set when Used out of Range)







Fault symptom
- Lock/unlock with remote control not working

On-board diagnosis

Type of diagnosis:
- Diagnostics carried out when the button is depressed.

Enable criteria:
- Control module is active.

Fault criteria:
- Code sent from remote control does not correspond to code stored in CIM.

System reaction to a fault:
- None

Diagnostic help
- A DTC is generated if the remote control battery is flat and after changing battery.
- Pressing the remote control 5 times outside its operating range after changing the battery will generate a fault code. If the car is locked at this time, you will have to unlock it manually and subsequently insert the key into the ignition lock to reprogram the key.

Diagnostic help

Functions in the diagnostic tool related to the fault:

Test value:
- Remote Last Range Status
- Remote Battery Status
- Remote Last Number
- See menu "All - Add/Remove"
