B3113

B3113 00

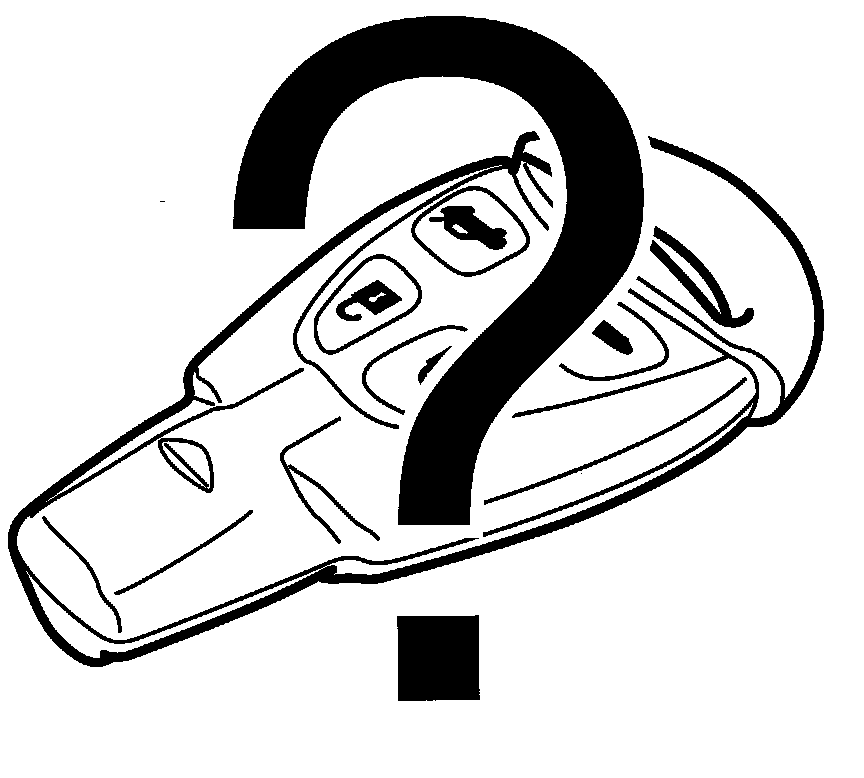

Remote Control 5, Low Battery







Fault symptom
- Remote control indicates weak battery.
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics runs when key is inserted.

Fault criteria:
- Remote control indicates weak battery.

System reaction to a fault:
- None

Diagnostic help

Diagnosis regards:
- Battery

Functions in the diagnostic tool related to the fault:

Test value:
- Remote Battery Status
(See also description of readings/activations in diagnostic tool)
