B3060

B3060 00

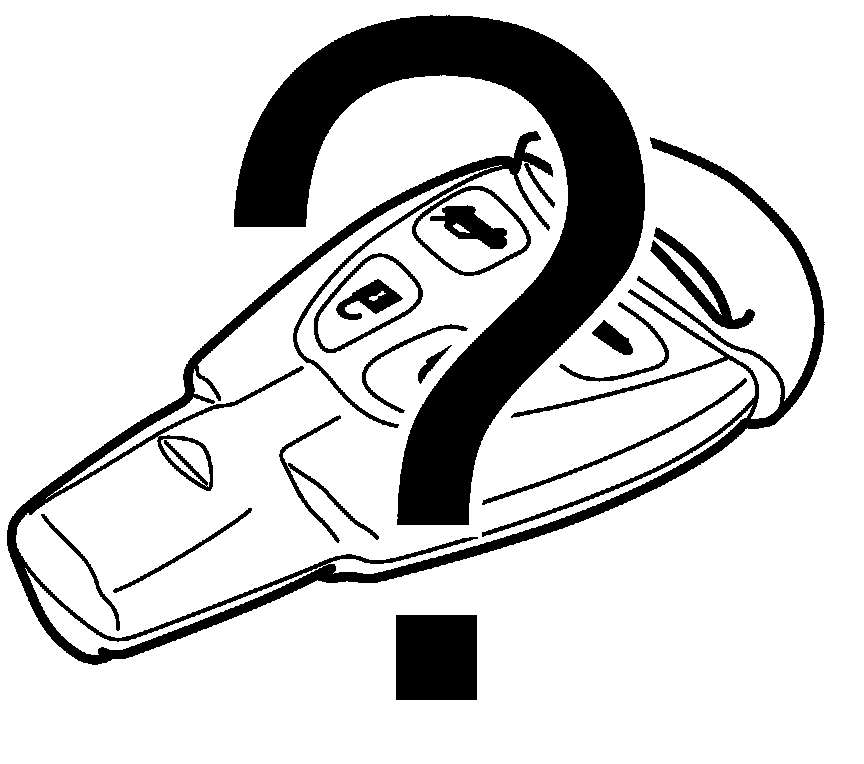

Unknown Transponder Detected at Key in







Fault symptom
- Messages shown in SID.
- Engine does not start.

On-board diagnosis

Type of diagnosis:
- Diagnostics is carried out each time the key is inserted in the ignition switch.

Enable criteria:
- Key in ignition switch.

Fault criteria:
- Faulty fix code read from the transponder.

System reaction to a fault:
- None

Diagnostic help
- A trouble code is generated if a key from another car is inserted in the ignition switch.

Diagnostic help

Functions in the diagnostic tool related to the fault:

Test value:
- Transponder Fixcode OK
(See also description of readings/activations in diagnostic tool)
- See menu "All - Add/Remove"
